Model: Adjustable Combined Bearings for Steel Industry
Brand: MBY
Quantity:

Adjustable Combined Bearings for Steel Industry

Product Description
MBY Combined Bearings are particularly suitable for truck lift columns and all other convoying systems which require profiles.They can afford load from both axial and radial direction at the same time.
With the optimzed structure, the mount space can be saved, and the usage is also simple that just to weld the pivot in the mount plate,and it is not necessary to dismantle the whole set.

The radial bearings are particularly suitable for automation and shift systems, which do not require heavy axial loads,and they come from the combined bearings and maintain the same features of construction.
According to customer’s application, the OD surface can be designed to be flat , crowned and other special ones.With the optimum design and high standard material,
MBY combined bearings can support heavy loads and shock loads, and have extended  lifetime.

MBY combined bearings are designed for easy installation and maintenance.The special lubrication system allows easy and reliable re-lubricate.MBY produces the whole range of combined bearings, both standard design and non-standard design.
Moreover, we can develop combined bearings according to your application, sample or drawing.MBY design engineering and application assistance are a part of our value added services.

MBY Bearing Group can provide series of Combined Bearings :
Standard Combined Bearings
Adjustable Combined Bearings
Combined Bearings for "I" Standard Profiles
Adjustable Combined Bearings for Heavy Industry
JUMBO Combined Bearing
Adjustable Combined Bearings with Eccentric Pin
High Speed combined Bearings
Adjustable Combined Bearings with screw
Adjustable Combined Bearings with Plastic Axial Roller
Adjustable Combined Bearings for Steel Industry
Standard Radial Bearings
Precision Radial Bearing

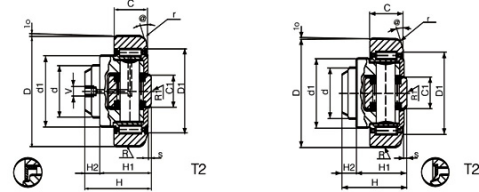

109


Note:Swipe left or right to view the complete table!
Bearing Code d D C H H1 H2 D1 C1 d1 S @ r R R1 V C Co CA CoA Speed grease rpm Mass Reference index
mm mm mm mm mm mm mm mm mm mm degree mm mm mm mm KN KN KN KN Kg Italy
2Z 2RS



















ZZ 2RS
AMBY004.2Z AMBY004.2RS 40 78.3 23 40.7 29 11.7 61 24 54 2.5 20 4 700 700 M6X1 48 56.8 18 18 800 0.88 MR.004 MR.024
AMBY006.2Z AMBY006.2RS 50 101.9 28 46 33 13 77 30 67 2.5 20 4 850 700 M6X1 73 82 25 27 700 1.72 MR.006 MR.026
AMBY008.2Z AMBY008.2RS 55 108.55 31 53 39 14 82 34 71 3.5 20 4 1000 700 M6X1 81 95 31 36 700 2.22 MR.008 MR.038
AMBY011.2Z AMBY011.2RS 60 165 36 61 46 15 130 60 113 3 10 4 1000 1000 M6X1 125 181 46 61 400 6.3 MR.011
AMBY016.2Z AMBY016.2RS 60 129.4 33 56.5 42.5 14 94 40 78 2.5 10 4 1000 750 M6X1 105 108 32 39 500 3.4 MR.016
AMBY031.2Z AMBY031.2RS 35 70.35 23 40.5 30.5 10 57 22 48 2.5 20 4 650 500
45.5 51 14 13 900 0.47 MR.031 MR.032
AMBY034.2Z AMBY034.2RS 45 89.25 30 50 37.5 12.5 68 26 59 3 20 4 850 700 M6X1 68 72 23 23 800 1.58 MR.034 MR.035
AMBY040.2Z AMBY040.2RS 60 123.5 33 57 42 15 94 40 78 2.5 15 4 1000 750 M6X1 105 108 32 39 500 3.2 MR.040 MR.041
