Angular contact spherical plain bearings

Product Description
MBY® Spherical plain bearings are plain bearings, inner and outer rings of which have sphered sliding surfaces. MBY® Spherical plain bearings are designed for the transmission of radial, axial and combined loads, including shock loads in the joints of machine parts and mechanisms where it is necessary to provide with spatial complex or vibrating, rocking, rotating and simple movements at low speeds. Radial, angular contact and thrust spherical bearings are produced depending on the nature of transmitted loads.

All MBY® Spherical plain bearings can be divided into two groups according to the method of the working surfaces lubrication.
There are bearings requiring the lubrication and self-lubricating bearings the sliding surfaces of which are made of special materials.
The latter are used in the units with higher durability requirements, or when there are difficulties in supports maintenance when it is unreasonable to use lubrication requiring bearings.

The bearings with protective contact seals are manufactured to protect sliding surfaces from the environmental effects and to keep the lubricant in.
-outer rach bonded with PTFE fabric.
-spherical surface of inner ring hara chrome plated.
-outer rings is properly phosphate treated.

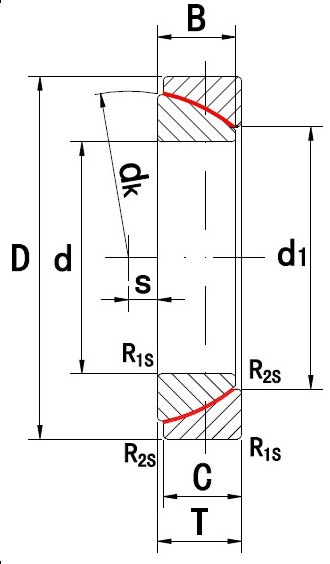

55
Note:Swipe left or right to view the complete table!
Part No. Dimensions mm load ratings KN weight kg
d D T dk d1 B C S R1s R2s dyn. stat.
min min C C0
GE25SW 25 47 15 42.5 31.4 14 14 1 0.6 0.2 71 140 0.14
GE28SW 28 52 16 47 35.7 15 15 1 1 0.3 90 180 0.18
GE30SW 30 55 17 50 36.1 16 16 2 1 0.3 95 190 0.22
GE32SW 32 58 17 52 37.5 17 16 2 1 0.3 102 204 0.24
GE35SW 35 62 18 56 42.4 17 17 2 1 0.3 116 232 0.28
GE40SW 40 68 19 60 46.8 18 18 1.5 1 0.3 134 270 0.34
GE45SW 45 75 20 66 52.9 19 19 1.5 1 0.3 160 320 0.43
GE50SW 50 80 20 74 59.1 19 19 4 1 0.3 176 355 0.47
GE55SW 55 90 23 80 62 22 22 4 1.5 0.6 220 440 0.7
GE60SW 60 95 23 86 68.1 22 22 5 1.5 0.6 240 480 0.75
GE65SW 65 100 23 92 75.6 22 22 5 1.5 0.6 260 520 0.8
GE70SW 70 110 25 102 82.2 24 24 7 1.5 0.6 315 630 1
GE75SW 75 115 25 107 84.4 25 25 7.9 1.5 0.6 345 670 1.1
GE80SW 80 125 29 115 90.5 27 27 10 1.5 0.6 375 750 1.6
GE85SW 85 130 29 122 94.8 29 26.5 9.4 1.5 0.6 425 810 1.7
GE90SW 90 140 32 130 103.3 30 30 11 2 0.6 480 965 2.2
GE95SW 95 145 32 135 104.4 32 29.5 10.8 2 0.6 500 1000 2.3
GE100SW 100 150 32 140 114.3 30 30 12 2 0.6 520 1040 2.4
GE105SW 105 160 35 148 113.8 35 32.5 12.3 2 2 565 1250 2.9
GE110SW 110 170 38 160 125.8 36 36 15 2.5 0.6 710 1430 3.7
GE120SW 120 180 38 170 135.4 36 36 17 2.5 0.6 765 1530 4
GE130SW 130 200 45 190 148 42 42 20 2.5 0.6 965 1930 6
GE140SW 140 210 45 200 160.6 42 42 20 2.5 0.6 1020 2040 6.4
GE150SW 150 225 48 213 170.9 45 45 21 3 1 1180 2360 7.9
GE160SW 160 240 51 225 181.4 48 48 21 3 1 1340 2700 9.6
GE170SW 170 260 57 250 194.3 54 54 27 3 1 1660 3350 13
GE180SW 180 280 65 260 205.5 61 61 21 3 1 2000 4000 17.5
GE190SW 190 290 64 275 211.8 61 61 29 3 1 2080 4150 18
GE200SW 200 310 70 290 229.2 66 66 26 3 1 2360 4750 2

Part No. Dimensions /mm Load ratings KN Weight kg
d D B C d1 dk R1s R2s α dyn. stat.
min min min C C0
GE15UK2RS 15 26 12 9 18 22 0.3 0.3 9 26 52 0.035
GE17UK2RS 17 30 14 10 20 25 0.3 0.3 10 48.7 81.2 0.041
GE20UK2RS 20 35 16 12 24 29 0.3 0.3 9 67.5 112 0.066
GE25UK2RS 25 42 20 16 29 35.5 0.6 0.6 7 127 212 0.119
GE30UK2RS 30 47 22 18 34 40.7 0.6 0.6 6 165 275 0.153
GE35UK2RS 35 55 25 20 39 47 0.6 1 6 210 350 0.233
GE40UK2RS 40 62 28 22 45 53 0.6 1 7 277 462 0.306
GE45UK2RS 45 68 32 25 50 60 0.6 1 7 360 600 0.427
GE50UK2RS 50 75 35 28 55 66 0.6 1 6 442 737 0.546
GE60UK2RS 60 90 44 36 66 80 1 1 6 690 1150 1.04
GE70UK2RS 70 105 49 40 77 92 1 1 6 885 1475 1.55
GE80UK2RS 80 120 55 45 88 105 1 1 6 1125 1875 2.31
GE90UK2RS 90 130 60 50 98 115 1 1 5 1283 2300 2.75
GE100UK2RS 100 150 70 55 109 130 1 1 7 1717 2862 4.45
GE110UK2RS 110 160 70 55 121 140 1 1 6 1845 3075 4.82
GE120UK2RS 120 180 85 70 135 160 1 1 6 2685 4475 8.05
GE140UK2RS 140 210 90 70 155 180 1 1 7 3015 5025 11.02
GE160UT2RS 160 230 105 80 170 200 1 1 8 3840 6400 14.01
GE180UT2RS 180 260 105 80 199 225 1.1 1.1 6 4320 7200 18.65
GE200UT2RS 200 290 130 100 213 250 1.1 1.1 7 6000 10000 28.03
GE220UT2RS 220 320 135 100 239 275 1.1 1.1 8 6600 11000 35.51
GE240UT2RS 240 340 140 100 265 300 1.1 1.1 8 7200 12000 39.91
GE260UT2RS 260 370 150 110 288 325 1.1 1.1 7 8550 14250 51.54
GE280UT2RS 280 400 155 120 313 350 1.1 1.1 6 10050 16750 65.06
GE300UT2RS 300 430 165 120 336 375 1.1 1.1 7 10800 18000
