Brand: MBY
Quantity:

CRY...V/CRY...VUU Yoke Type Track Rollers Bearing

Product Description

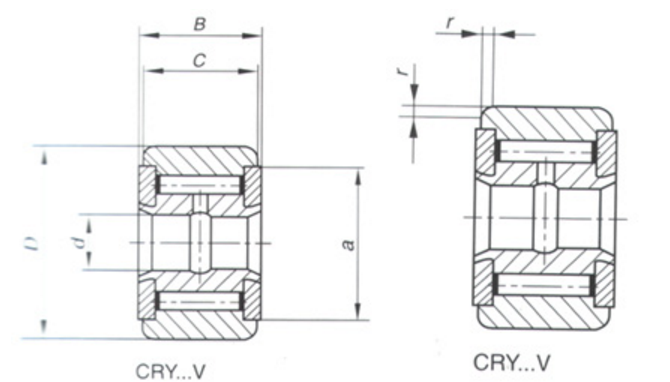

Yoke Type Track Rollers Bearing2

Bearing Sharft mm Bearing No. Dimensions mm
Basic No. Seal Type d D B C

6.35 CRY 12 V CRY 12 VUU 6.35 19.05 0.5625 14.288 12.7
CRY 14 V CRY 14 VUU 6.35 22.225 0.5625 14.288 12.7
7.938 CRY 16 V CRY 16 VUU 7.938 25.4 0.6875 17.463 15.875
CRY 18 V CRY 18 VUU 7.938 28.575 0.6875 17.463 15.875
9.525 CRY 20 V CRY 20 VUU 9.525 31.75 0.8125 20.638 19.05
CRY 22 V CRY 22 VUU 9.525 34.925 0.8125 20.638 19.05
11.112 CRY 24 V CRY 24 VUU 11.112 38.1 0.9375 23.813 22.225
CRY 26 V CRY 26 VUU 11.112 41.275 0.9375 23.813 22.225
12.7 CRY 28 V CRY 28 VUU 12.7 44.45 1.0625 26.988 25.4
CRY 30 V CRY 30 VUU 12.7 47.625 1.0625 26.988 25.4
15.875 CRY 32 V CRY 32 VUU 15.875 50.8 1.3125 33.338 31.75
CRY 36 V CRY 36 VUU 15.875 57.15 1.3125 33.338 31.75
19.05 CRY 40 V CRY 40 VUU 19.05 63.5 1.5625 39.688 38.1
CRY 44 V CRY 44 VUU 19.05 69.85 1.5625 39.688 38.1
Standard mounting dimensions Basic Load Rating Limiting Speed rpm
r smin Interference fit Transition fit clearance fit C C0
Max. Min. Max. Min. Max. Min. kgf kgf
0.794 6.342 6.332 6.358 6.348 6.363 6.353 890 1250 8500
0.794 6.342 6.332 6.358 6.348 6.363 6.353 890 1250 8500
1.191 7.93 7.92 7.945 7.935 7.95 7.94 1330 2310 6300
1.588 7.93 7.92 7.945 7.935 7.95 7.94 1330 2310 6300
1.588 9.517 9.507 9.533 9.523 9.538 9.528 2400 3230 5500
1.588 9.517 9.507 9.533 9.523 9.538 9.528 2400 3230 5500
1.588 11.105 11.095 11.12 11.11 11.125 11.115 2870 4090 4700
1.588 11.105 11.095 11.12 11.11 11.125 11.115 2870 4090 4700
1.588 12.692 12.682 12.708 12.698 12.718 12.708 3590 5670 4000
1.588 12.692 12.682 12.708 12.698 12.718 12.708 3590 5670 4000
1.588 15.867 15.587 15.883 15.873 15.893 15.883 4660 8220 3600
1.588 15.867 15.587 15.883 15.873 15.893 15.883 4660 8220 3600
2.381 19.042 19.032 19.058 19.048 19.068 19.058 6260 11900 3000
2.381 19.042 19.032 19.058 19.048 19.068 19.058 6260 11900 3000
