Model: Cam Followers - PWKR series
Brand: MBY
Quantity:

Cam Followers - PWKR series

Product Description
MBY Cam Followers are essentially needle or cylindrical rollers or ball bearings,which have a thick-walled outer race. The outside (runner) surface of the outer ring is crowned which serves to preventing edge stress if the cam follower runs in a titled or inclined position. Cam followers are ready-to-mount units which are filled with grease. They are suitable for all types of cam drives, tracks, conveyor system and etc.Instead of an inner race, cam followers have a solid stud which is threaded, so they can be quickly and easily attached to appropriate machine components by means of a hexagonal nut. Axial guidance for the outer race is provided by an integral flange at the head of the stud and a side washer pressed on to the stud, or by the roller complement.

MBY cam followers are available in different designs which have the same dimensions and differ only in their internal designs. Generally, the cam followers have a concentric seating on the stud, but some are also available with an eccentric collar which is shrunk on to the stud. Cam followers with eccentric collar enable an optimum interaction with the cam to be obtained and also allow less stringent manufacturing tolerance to be used for the associated components.

Advantages of MBY cam followers:
Optimized structure and reliable quality;
Optimize the contacting surface logarithmically to reduce the contact stress;
Full ranges of precision standards for different working conditions;
Saving the installation and maintenance costs with ready-to-fit units;
Extend the working lifetime by filling grease for lif

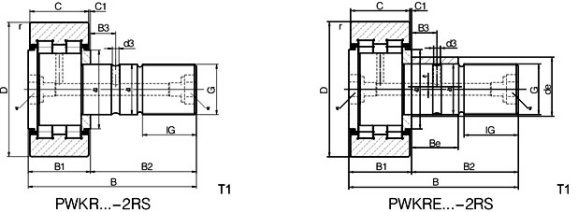

118

Note:Swipe left or right to view the complete table!
Bearing code d1 D B B1max B2 B3 C C1 d2 d3 G IG W de Be e Basic load rating Limiting speed rpm
without mass with mass mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm Crw Corw
eccentric
eccentric
















N N
collar g collar g

















PWKR35-2RS 164 PWKRE35-2RS 177 16 35 52 19.6 32.5 7.8 18 0.8 20 3 M16X1.5 17 8 20 12 1 11900 14600 6000
PWKR40-2RS 242 PWKRE40-2RS 258 18 40 58 21.6 36.5 8 20 0.8 22 3 M18X1.5 19 8 22 14 1 13600 17200 5000
PWKR47-2RS 380 PWKRE47-2RS 400 20 47 66 25.6 40.5 9 24 0.8 27 4 M20X1.5 21 10 24 18 1 23800 30500 3800
PWKR52-2RS 450 PWKRE52-2RS 470 20 52 66 25.6 40.5 9 24 0.8 31 4 M20X1.5 21 10 24 18 1 24600 33000 3800
PWKR62-2RS 795 PWKRE62-2RS 824 24 62 80 30.6 49.5 11 28 1.3 38 4 M24X1.5 25 14 28 22 1 34000 45500 2200
PWKR72-2RS 1020 PWKRE72-2RS 1050 24 72 80 30.6 49.5 11 28 1.3 44 4 M24X1.5 25 14 28 22 1 38000 54000 2200
PWKR80-2RS 1600 PWKRE80-2RS 1670 30 80 100 37 63 15 35 1 47 4 M30X1.5 32 14 35 29 1.5 55000 79000 1800
PWKR90-2RS 1960 PWKRE90-2RS 2020 30 90 100 37 63 15 35 1 47 4 M30X1.5 32 14 35 29 1.5 62000 90000 1800
