Double Direction Thrust Ball Bearing with Spherical Outer Ring

Product Description

MBY thrust ball bearings are manufactured as single direction or double direction thrust ball bearings.
They are designed to accommodate axial loads only and must not be subjected to any radial load.
MBY thrust ball bearings are separable, i.e. the shaft washer, housing washer(s), ball and cage assembly(s) can be mounted separately.
Shaft washers have a ground bore to enable an interference fit. The bore of the housing washer is turned and always larger than the shaft washer bore.

Single direction thrust ball bearing
MBY single direction thrust ball bearings consist of a shaft washer, a housing washer and a ball and cage assembly.
As their name implies, single direction thrust ball bearings can accommodate axial loads and locate a shaft axially, in one direction only.

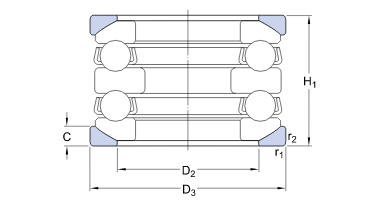

Double direction thrust ball bearing
MBY double direction thrust ball bearings consist of one shaft washer, two housing washers and two ball and cage assemblies.
The housing washers and ball and cage assemblies of double direction bearings are identical to those used in single direction bearings.
Double direction thrust ball bearings can accommodate axial loads and locate a shaft axially, in both directions



Note：Swipe left or right to view the complete table!

Designations		Principal dimensions				Basic load ratings		Fatigue load limit	Speed ratings
Bearing	Seat washer					dynamic	static		Reference speed	Limiting speed
MBY		d	D	H	H1	C	C0	Pu
		mm				kN		kN	r/min
54306	U 306	25	60	41.3	46	35.8	65.5	2.4	2800	3800
54207	U 207	30	62	37.8	42	35.1	73.5	2.7	2800	4000
54208	U 208	30	68	38.6	44	44.2	96.5	3.6	2800	3800
54308	U 308	30	78	54.1	59	61.8	122	4.5	2200	3000
54307	U 307	30	68	47.2	52	49.4	96.5	3.5	2400	3400
54409	U 409	35	100	78.9	86	124	240	9	1500	2000
54309	U 309	35	85	56.2	62	76.1	153	5.6	1900	2800
54209	U 209	35	73	39.6	45	39	86.5	3.2	2600	3600
54410	U 410	40	110	83.2	92	148	305	11.4	1400	1900
54310	U 310	40	95	64.7	70	81.9	170	6.3	1700	2400
54211	U 211	45	90	49.6	55	58.5	134	4.9	2200	3000
54312	U 312	50	110	70.7	78	101	224	8.3	1500	2200
54316	U 316	65	140	86.1	95	159	390	13.7	1300	1800
54416 M	U 416	65	170	128.5	140	307	750	25	850	1200
54317	U 317	70	150	95.2	105	174	405	14	1100	1500
54420 M	U 420	80	210	159.9	176	371	1060	31.5	700	950
