Double-row Ball Water Pump Bearings - WB1630 Series

Product Description

MBY Water pump bearings basically consist of standard double row bearings, ball-ball type and ball-roller type. Water pump bearings do not have an inner ring but instead have raceways directly machined into the shaft. Therefore, there is additional space for rolling elements enabling higher specific load-carrying capability than conventional single bearings. Water pump bearings can support both large axial and radial loads. The high load carrying capacity and high rotation speed enable the large flow of the water pump.

MBY Water pump bearings are well greased and sealed to ensure high dependability. And the ends of their shaft normally extend beyond the outer ring on both sides. The length and diameter of these extended sections can be matched to the specific application. They are predominantly used in automotive water pump.

MBY Water pump bearings a includes:
Single row ball and roller water pump bearing ( WR..series)
Double-row ball water pump bearing - WB1630
Double-row ball water pump bearing - WB1940
Double-row ball water pump bearing - WB1938
Double-row ball water pump bearing - WB1226
Double-row ball water pump bearing - WB1224
Double-row ball water pump bearings
Single-row ball and single roller water pump bearings



Note：Swipe left or right to view the complete table!

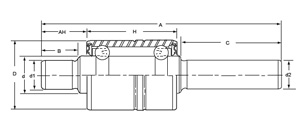

Bearing Designation					Boundary Dimensions (mm)
MBY	NSK	FAG	RHP	KOYO	D	H	A	AH	d	d1	d2	B	C
885104					30	38.89	132.16		15.918
885118	885118	W2468	FPS122	885118RSE	30	38.89	119.07	37.31	15.918
885140	885595	W2406-2	FPS17	885140BRSE	30	38.89	103.2	23.42	15.918
885159	885159	W2414	FPS860		30	38.89	92.48	24.21	15.918
885167	885167		FPS153		30	38.89	115.51	27.8	15.918
885168	885168AD	W2481-6		885168AA	30	38.89	122.22	40.18	15.918
885168	885169	W2507	FPS42	885169-1	30	38.89	129	31.75	15.918
8855245	885524S	W2433-2	FPS456		30	38.89	100	24	15.918		12		46
W6484-1					30	38.9	123		15.918
WB1530085					30	38.89	85	13.06	15		12		28.5
WB1530096			FPS744		30	38.89	96.5	17.87	15.918		12.052		35.45
WB1530100			FPS810		30	38.89	100	23.5	15.918
WB1630068			WPB16068RS		30	38.89	68.4	25	15.918
WB1630069		W2270			30	38.89	68.66	27.8	15.918
WB1630074				FPS878	30	38.89	73.91	11.4	15.918
WB1630078					30	38.89	73	17	16
WB1630078RS				FPS832	30	38.89	75.6	27.01	15.918
WB1630080-1					30	30	79.6		15.918		12		33
WB1630080-3					30	23	80.3	17.2	15.918		12		38.5
WB1630080-4					30	27	80	15.9	15.918
WB1630080D					30	30	80	18	16	12	12	17	31
WB1630081				FPS413	30	38.89	80.95	22.48	15.918
WB1630083					30	27	82.5	17.7	15.918
WB1630083C					30	25	83.1	16	15.918
WB1630083D					30	30	83	18	16		12		33.8
WB1630084					30	30	84	17	15.918		12		33
WB1630084-1		W234	WPB16084RS		30	38.89	84.4	13	15.918		12		30
WB1630085-1				FPS694	30	38.89	85.22	15.21	15.918		12.042		29.21
WB1630085-2					30	27	84.4	17	15.918
WB1630085D				FPS855	30	38.89	84.99	15.07	15.918		12.037		28
WB1630086			WPB16086/1RS		30	30	86	16.5	15.918		12		37
WB1630086D					30	38.89	86	17	15.918	15	12	16	33
WB1630087-1					30	38.89	87.4		15.918
WB1630087-4					30	38.89	86.5		15.918		12		32
WB1630087C					30	38.89	86.5	13.5	15.918		12.038		32.7
WB1630088-1					30	38.89	88	12.4	15.918		12		35.3
WB1630088-2					30	30	87.5	13.5	15.918		12		37.5
WB1630091C					30	38.89	91	13.5	15.918		12		36
WB1630091D			WPB16091RS		30	38.89	91.5	17.56	15.918	12	12	15.5	3
WB1630092-1				FPS37	30	38.89	91.85	20.45	15.918		12.675	15	29.34
WB1630092-2	885477	W2364S	FPS908	885477ARSE	30	38.89	92.48	25.12	15.918		12.037		26.06
WB1630092-2					30	38.89	92		16
WB1630092D					30	38.89	92	16.5	15.918	12	12	14.5	34.5
WB1630093	885330	W2366		WPB16093RS	30	38.89	93	18.5	15.918
WB1630093-1				WPB16093-1RS	30	38.89	93	18.5	15.918		12		32.6
WB1630093-2					30	38.89	93.25	16.25	16	12	12	14.5	35.75
WB1630093D				WPB16093-4RS	30	38.89	92.5	16.5	15.918		12		34.5
WB1630094			FPS926		30	38.89	94.5	35.11	15.918
WB1630095				WPB16095CRS	30	38.89	94.6	19.2	15.918		12		33.5
WB1630097					30	30	97		15.918
WB1630098-1			FPS519		30	38.89	97.51	23.49	15.918
WB1630098-2	885110	W2384S			30	38.89	97.65	19.05	15.918		12.675		36.53
WB1630098-3	885324		FPS849		30	38.89	97.82	17.88	15.918
WB1630098-4		W2385-4			30	38.89	98	20	15.918
WB1630098-5		W2386S	FPS811		30	38.89	98	18.51	15.918		12.235		38
WB1630098-6					30	38.89	97.65		15.918
WB1630098A	885307	W2385	FPS595		30	38.89	98	17	15.918
WB1630098C				WPB16095-2RS	30	38.89	98	16	15.918		12		40.6
WB1630098CA		W2385-6			30	38.89	98	17.06	15.918
WB1630098W					30	38.89	98	16.5	15.918
WB1630099	885474	W2387S	FPS815	WPB16099-1RS	30	38.89	98.5	22.55	15.918		12		33.78
WB1630099-1				WPB16099-5RS	30	38.89	98.5	16.5	15.918	12	12		40.5
WB1630099-2	885301				30	38.89	98.88	23.62	15.918	15	15	21.13	32.51
WB1630099-3					30	38.89	98.5	16.25	16	12	12	14.5	50.25
WB1630100				WPB16100ARS	30	38.89	100	24	15.918		12		35
WB1630100-1					30	39	100	21	15.918		12		37.5
WB1630101					30	38.89	101	25	16		12		35
WB1630101-1	885467	W2398-1S	FPS919		30	38.89	101.24	29	15.918	12.007	12.687	25.4	31.01
WB1630101-2					30	38.89	101.2	21.8	15.918
WB1630101D	885328			BWF3044	30	38.89	101	24	15.918	14	12	20.5	35.1
WB1630102	885321	W3399			30	38.89	101.5	17.5	15.918
WB1630102-1				885685RSH	30	38.89	101.5	17.5	15.918
WB1630102-3		W2401-3	FPS120		30	38.89	102.01	16.92	15.918
WB1630102-4				WPB16102CRSE	30	38.89	102.26	35	15.918	15	15	32.92	26.04
WB1630102-5		W2404S	FPS623	WPB16102BRSE	30	30	102.62	24.45	15.918		12.674		38.1
WB1630102A	885147		FPS1		30	38.89	102.5	22	15.918		12.675		38.5
WB1630103-1			FPS484		30	38.89	101.74	35.02	15.918	12.7	12.014	30.5	23.75
WB1630103-2	885405			WPB16102-4RSE	30	38.89	102.74	28.77	15.918	12.014	12.7	25.5	32
WB1630103-3			FPS532	WPB16102AHSE	30	38.89	102.87	22.7	15.918		12.675		38.1
WB1630103-4			FPS620	WPB16103ERSE	30	38.89	102.87	23.11	15.918
WB1630103D				WPB16103-9RS	30	38.89	103	16.51	15.918		12		43
WB1630104					30	38.89	104	16.25	16	12	12	14.5	46.5
WB1630104-1					30	38.89	103.8	17.5	16	12	12	16	44.8
WB1630104-2		W24071S	FPS835		30	38.89	103.5	21.56	15.918		12		39.75
WB1630104-3	BWF3088				30	38.89	103.51	19.56	15.918		12		42
WB1630104-4			FPS601		30	39	103.84	22.33	15.918
WB1630104-5					30	38.89	104		15.918		12		35.1
WB1630104-6	BWF30AA		FPS734	R16150-1RS	30	38.89	103.5	21.58	15.918	12	12	18.26	39.75
WB1630104D					30	38.89	103.65	21.5	15.918		12		36
WB1630105					30	38.89	105.36	16.2	16	12	12	15	48
WB1630105-1		W2412-1			30	38.89	104.65	20.3	15.918
WB1630105-2	885602	W2412	FPS239		30	38.89	104.68	27.05	15.918
WB1630105-3			FPS917		30	39	105	47.16	15.918
WB1630105 -4			FPS26		30	38.89	105.16	23.95	15.918
WB1630105-5				885699RSE	30	38.89	92.5	20.63	15.918
WB1630105-6					30	38.89	105		15.918		12		33.3
WB1630106	885490		FPS104	WPB16106-3RSEH	30	38.89	96.5	26.11	16
WB1630106-1		W2415-1S	FPS106	WPB16105BRS	30	38.89	93	24.05	15.918		12		40
WB1630106-2				WPB16106MRS	30	38.89	93.25	16.5	15.918	12	12	13.1	46
WB1630106-3	885097	W2417-2			30	38.89	97	20.65	15.918
WB1630106-4		W2418		WPS16106DRS	30	38.89	98	25.15	15.918
WB1630106-5	885439	W2418S	FPS730K	WPB16106DRSE	30	38.89	98	25.12	15.918		12.738		38.86
WB1630106-6					30	38.89	98	18.5	15.918		12		41
WB1630106-7					30	38.89	97.82	20.8	15.918
WB1630106-8					30	38.89	93	23.5	15.918		12		40.5
WB1630106-9					30	38.89	98		16
WB1630106D					30	38.89	94.5	16.25	15.918	12	12	14.5	48
WB1630106D-1					30	38.89	97.51	25	16		12		40
WB1630106D-9					30	38.89	94.6	17.5	16	12	12	16	46.7
WB1630106G					30	38.89	97.65		16
WB1630106W					30	38.89	97.65	30	15.918		12		34
WB1630107					30	38.89	98	27.8	15.918	15.01	12.052	26.1	35
WB1630108					30	38.89	98	21.5	15.918		12		44.5
WB1630109					30	38.89	98.5	27.31	16		12		33.5
WB1630109-1		W2428-1		885111-D	30	38.89	98.5	27.38	15.918		12
WB1630110		W2431-2S			30	38.89	98.5	25.1	15.918		12.04		38.8
WB1630110-1	885107B	W2431	FPS520		30	38.89	98.88	14.67	15.918
WB1630110-2	885305				30	38.89	100	23.52	15.918
WB1630111					30	39	100	28.96	15.918
WB1630112	885167			885167	30	38.89	101	23.8	15.918		12
WB1630112-1		W2440-4	FPS208	885167DRSE	30	38.89	101.2	29.21	15.918
WB1630112-2	885098	W2440-1			30	38.89	111.91	26.7	15.918
WB1630112-3	885327			WPB116112-5RS	30	38.89	112	25.15	15.918
WB1630112-4		W2440-5S		BWF3076B	30	38.89	112	30	15.918		12	40.49
WB1630112-5		W2441-1			30	38.89	112	27	15.918
WB1630112-6		W2442			30	38.89	112.4	23.37	15.918
WB1630112D					30	38.89	101	21.5	15.918		12		44
WB1630113-1			FPS23		30	38.89	112.52	31.26	15.918
WB1630113-2			FPS16		30	38.89	112.67	25.52	15.918
WB1630113-3	885614				30	38.89	112.78	30	15.918
WB1630113-4		W2445		885155	30	38.89	113.11	31.75	15.918
WB1630113-5			FPS48	WPB16113CRSE	30	38.89	113.21	32	15.918
WB1630113-6	N885156	W2446	FPS24	885156-S	30	38.89	113.49	27.38	15.918
WB1630113-7					30	38.89	113	18.5	15.918		12	53.6
WB1630114					30	38.89	114	24	15.918
WB1630114-1		W2447			30	38.89	113.67	31.6	15.918
WB1630114-2	885697	W2450-2		C8DE8530A-1RSE	30	38.89	114.3	32	15.918
WB1630114-3					30	38.89	113.6	17	15.918	12	12	55.6
WB1630114-4					30	38.89	114		15.918		12	47.8
WB1630115-1				WPB16115-1RS	30	38.89	114.54	29.4	15.918		12	42.5
WB1630115-2	885133-A			885133ARSE	30	38.89	114.81	32	15.918
WB1630115-4					30	38.89	115	26.11	16
WB1630115-5				WPB16115-3ARS	30	38.89	115	16.5	15.918		12	33
WB1630116					30	38.89	116	26	15.918		12	46
WB1630116-1	8851495	W2431	FPS54		30	38.89	115.75	26.85	15.918
WB1630116-2				WPB16116-1RS	30	38.89	116	30.06	15.918		12	43
WB1630116C					30	38.89	116	27.11	15.918
WB1630117					30	38.89	116.5	27.5	16		13		47
WB1630117-1		W2462-2		885190	30	38.89	117.35	3.96	15.918
WB1630118		W2465			30	38.89	118.26	14.68	15.918
WB1630119-1	885135S	W2470		885135CRSE	30	38.89	119.46	32.54	15.918
WB1630119-2	885637				30	38.89	119.48	40.82	15.918
WB1630119-3					30	38.89	119	22.5	15.918		12		55
WB1630119C					30	38.89	119.3	37.6	15.918
WB1630120					30	38.89	120	31	15.918
WB1630120-1	885584S	W2472		885584	30	38.89	119.84	36.5	15.918
WB1630121	885105	W2476		885105	30	38.89	120.9	29.46	15.918
WB1630121-1		W2475		885222	30	38.89	120.65	28.12	15.918
WB1630121-2					30	39	121	24	15.918		12		53.6
WB1630122		W2479-1		885208	30	38.89	121.67	37.26	15.918
WB1630122-1	885238	W2478-1	FPS659		30	38.89	121.62	31.42	15.918
WB1630122-2			FPS674		30	38.89	121.92	41.37	15.918		12.675		38.1
WB1630122-3					30	38.89	122.12	32.96	15.918		12.703		44.7
WB1630122-4	885476	W2481			30	38.89	122.17	33.88	15.918
WB1630122-5	885168H		FPS290		30	38.89	122.22	28.67	15.918
WB1630122-6	885168C	W2481-1	FPS163	885168-1	30	38.89	122.22	28.58	15.918
WB1630122-7					30	38.89	122.24	33.5	15.918
WB1630122D					30	38.89	121.5	25	16		12		47.5
WB1630122X					30	38.89	122	26.5	15.918
WB1630123		W2484			30	38.9	123.04	38.86	15.918
WB1630123-1				WPB16122-1RSE	30	39	123		15.918
WB1630124					30	38.89	124	21	15.918
WB1630124-1					30	57.15	123.2	25.5	15.918
WB1630124-2			FPS109	WPB16124RS	30	38.89	124	42.61	15.918		12		40
WB1630124-3	885326	W2488S		BWF3089	30	38.89	124	41.78	15.918		12		40.49
WB1630124-4	885245	W2489-2	FPS923	885245RSE	30	38.89	124.4	40	15.918
WB1630124-5					30	39	124	23	15.918		12		60.5
WB1630124-6	885100B	W2486-2		885100B	30	38.89	123.67	31.75	15.918
WB1630125			FPS188		30	38.9	124.5	30.14	15.918		15.817		40.64
WB1630125-1	885534S				30	38.89	124.97	39.12	15.918
WB1630125-2					30	38.89	124.5	40	15.918
WB1630126		W2496			30	38.89	126	34.3	15.918
WB1630127					30	38.89	127	36	16	M12		19
WB1630127-1			FPS204	885142-C	30	38.89	127	44.52	15.918
WB1630127-2			FPS374	WPB16127CRSE	30	38.89	127	37.94	15.918		12.7		35.56
WB1630127-3	885142D	W2500-2			30	38.89	127	32.56	15.918
WB1630127D					30	38.89	127	27	15.918		12		59
WB1630128					30	38.89	127.7	22.41	15.918
WB1630128-1	885151B	W2405-6		885151-B	30	38.89	127.79	44.45	15.918
WB1630128-2	885141		FPS18	885141RSE	30	38.89	127.79	25.8	15.918
WB1630130					30	38.89	129	41	15.918
WB1630132		W2520	FPS389		30	38.89	132.16	50.42	15.918
WB1630132-1	885104A				30	38.89	132.16	47.85	15.918
WB1630133				885113-B	30	38.89	132.54	40.87	15.918
WB1630133-1				885113CRSE	30	38.89	132.64	29.77	15.918
WB1630133-2	885611	W3522-1	FPS661		30	38.89	132.64	29.77	15.918
WB1630133-3			FPS602		30	38.89	133.1	55.35	15.918
WB1630133-4	885415	W2524-1			30	38.89	133.25	38.86	15.918
WB1630134	885113	W2527		885113BRSE	30	38.89	133.86	42.65	15.918
WB1630135	885158AA	W2531-1		K885158AA	30	38.89	134.92	33.15	15.918
WB1630135-1	885437S	W2532	FPS786		30	38.89	135.28	50.85	15.918
WB1630135-2				885437RSE	30	38.89	135.28	45.59	15.918
WB1630136			FPS386	885093SRSE	30	38.89	135.74	44.5	15.918
WB1630136-1	885093	W2534-1		885093S	30	38.89	135.74	52.4	15.918
WB1630136-2	885158P	W2537	FPS7	885245RSE	30	38.89	136.4	39.4	15.918
WB1630137				885672	30	38.89	137.49	40	15.918
WB1630138		W2542	FPS287		30	38.89	137.67	46.23	15.918
WB1630138-1	885158		FPS25	885158-1RSE	30	38.89	138.1	40.89	15.918
WB1630138-2				885158-1	30	38.89	138.1	58.34	15.918
WB1630138-3		W2543			30	38.89	138.1	45.7	15.918
WB1630139	885603	W2548-1	FPS397	885603	30	38.89	139.32	35.05	15.918
WB1630141	885248	W2555	FPS757	885248RSE	30	38.89	141	49	15.918
WB1630141-1	885458	W2556	FPS885		30	38.89	141.22	38.93	15.918
WB1630142		W2559			30	38.89	142.1	44.86	15.918
WB1630143	885141	W2562	FPS19		30	38.89	142.88	40.08	15.918
WB1630144			FPS525	885151-B	30	38.89	144.28	52.71	15.918	12.703			47.24
WB1630146	885694S	W2575-1	FPS612	885141RSE	30	38.89	146.2	61.72	15.918
WB1630150					30	38.89	150	52	15.918	12	M10	50.5	48.5
WB1630150-1	885166C			885166C	30	38.89	150	35.1	15.918
WB1630154		W2606			30	38.89	154	34.04	15.918
WB1630154-1			FPS776	885125C	30	38.89	154.23	29.77	15.918
WB1630154-2	885613	W3607	FPS722		30	38.89	154.23	29.77	15.918
WB1630156				885671	30	38.89	155.58	69.95	15.918
WB1630160	885094	W2629-1		885094S	30	38.89	159.54	76.2	15.918
WB1630160-1	885136B	W2629-4		885136B	30	38.89	159.77	62.66	15.918
WB1630161	885117	W2637		885117	30	38.89	161.47	58.34	15.918
WB1630166			FPS61		30	38.89	165.85	63.48	15.918
WB1630167			FPS646		30	38.89	177.09	79.88	15.918
WB1635073					35	22.5	73	14.5	16		12		34.2
WB1635091					35	38.9	91		15.918
WB1635101					35	38.89	101		15.918		12		35
WB1635119					35	46	119	26.5	18		13		42.2
WB1730071			WPB1730071RS		30	23	71	13.5	17				32
WB1730078			WPB1730078RS		30	23	77.8	15.5	17		12		37.3
WB1736091					36	38.89	90.7	14	17		15		34
WB1736091-1					36	38.89	90.7		17		12		34
