Model: Drawn Cup Needle Roller Bearings - HK BK type
Brand: MBY
Quantity:

Drawn Cup Needle Roller Bearings - HK BK type

Product Description
MBY® Needle roller bearings are roller bearings with cylindrical rollers that are small in diameter but long in length (L/D≥2.5). MBY® Needle roller bearings have a high radial load carrying capacity. And since they have a low cross section, needle roller bearings are extremely suitable for bearing applications where the radial space is limited.

MBY® offers a wide range of needle roller bearings including needle roller & cage assemblies, drawn cup and solid needle roller bearings. They can also be specified as cam followers and track roller bearings by applications. The major application markets include automotive, consumer product and general industrial goods.

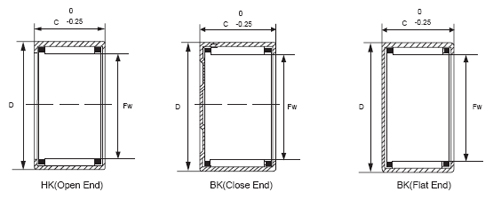

图片11 drawn
Note:Swipe left or right to view the complete table!
Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating LimitingSpeed
Current Original Code Fw D C Cr Dynamic Cor Static Oil
mm g mm N rpm
19.05 55000x22
36 19.05 30.17 47.6 18000 25000 16000
19.05 BA1210
16 19.05 25.4 15.88 11386 16413 16000
19.05 BA1212
21 19.05 25.4 19.05 14144 21706 16000
22.22 BA1816
29 22.22 34.92 25.4 20700 34500 13000
7.94 BA55
3.4 7.94 12.7 7.92 1917 1703 38400
12.7 BA87
6.6 12.7 17.46 11.13 1976 2500 18000
0 BHA68
5 9.52 15.88 12.7 6004 6093 30000
4 BK0408TN Apr-41 1.8 4 8 8 1540 1070 40000
5 BK0509 45941/5 2.1 5 9 9 2200 1790 36000
6 BK0608 35941/6 2.2 6 10 8 1830 1550 32000
6 BK0609 45941/6 2.6 6 10 9 2650 2400 30000
7 BK0709 45941/9 2.9 7 11 9 2800 2150 27000
8 BK0808 35941/8 3 8 12 8 2550 2400 21000
8 BK0810 88941/8 3.4 8 12 10 3700 3450 21000
8 BK08x14x10 25942/8 5.8 8 14 10 3800 3950 25000
9 BK0908 35941/9 3.4 9 13 8 3650 4050 25000
9 BK0910 55941/9 4.3 9 13 10 4050 4250 25000
9 BK0912 65941/9 4.9 9 13 12 5000 6000 25000
10 BK1010 55941/10 4.3 10 14 10 3900 4800 19000
10 BK1012 65941/10 5 10 14 12 5000 6300 19000
10 BK1015 0 6.2 10 14 15 6700 7800 19000
10 BK10x16x10 0 6.8 10 16 10 6800 8800 18000
12 BK1210 55941/12 5.2 12 16 10 4150 5800 19000
12 BK1212 65941/12 6.2 12 16 12 3800 5100 15000
12 BK12x18x12 35942/12K 10.3 12 18 12 5500 6300 17000
13 BK1312
11.2 13 19 12 6200 7100 17000
14 BK1410 35941/14 12.1 14 20 10 6700 7000 16000
15 BK1512 35941/15 12.7 15 21 12 7000 8400 14000
15 BK1515
0 15 21 15 9800 11400 14000
15 BK1516 55941/15 16.5 15 21 16 9800 11400 14000
15 BK1522 0 22 15 21 22 10400 16500 14000
16 BK1612 35941/16 13.8 16 22 12 7100 9200 14000
16 BK1616 55941/16 17.6 16 22 16 10100 14300 14000
16 BK1622 85941/16 23.4 16 22 22 11100 17400 14000
17 BK1712 35941/17 14.5 17 23 12 6900 9300 13600
18 BK1812 35941/18 14.9 18 24 12 7100 9900 12000
18 BK1816 55941/18 19.9 18 24 16 10600 15300 12000
20 BK2010 25941/20 14 20 26 10 5900 7200 10000
20 BK2012 35941/20 16.7 20 26 12 7600 10100 10000
20 BK2016 55941/20 22.3 20 26 16 11700 29100 10000
20 BK2020 75941/20 27.1 20 26 20 13700 24000 10000
20 BK2030
37.4 20 26 30 21800 40000 10100
22 BK2212 35941/22 18.1 22 28 12 8100 10400 10010
22 BK2216 55941/22 24.3 22 28 16 11400 18100 10010
22 BK2220 75941/22 29.9 22 28 20 14500 25000 10010
25 BK2512 25941/25 23.2 25 32 12 10000 14200 9000
25 BK2516 7941/25 31 25 32 16 13600 50000 9000
25 BK2520 65941/25 38.7 25 32 20 17900 30000 9000
25 BK2526
49 25 312 26 22500 42000 9000
25 BK2538 85941/25 69 25 32 38 30000 58000 9000
28 BK2816 45941/28 34.1 28 35 16 15400 22500 8700
28 BK2820 65941/28 43 28 35 20 18900 32000 8700
30 BK3012 25941/30 27.9 30 37 12 10100 16200 8100
30 BK3016 45941/30 37.1 30 37 16 15200 27000 8100
30 BK3020 65941/30 46.5 30 37 20 19700 33500 8100
30 BK3026
59.4 30 37 26 24000 50000 8100
30 BK3038
82.5 30 37 38 32500 74000 8100
35 BK3512 25941/35 32.9 35 42 12 12100 19300 7100
35 BK3516 45941/35 43.8 35 42 16 15700 27500 7100
35 BK3520 65941/35 54.8 35 42 20 20800 41000 7100
40 BK4012 25941/40 38.2 40 47 12 14000 24300 6300
40 BK4016 45941/40 51 40 47 16 20000 38500 6300
40 BK4020 65941/40 62 40 47 20 25500 52000 6300
45 BK4512 25941/45 45 45 52 12 12900 22500 5800
45 BK4516 45941/45 56 45 52 16 19300 38000 5800
45 BK4520 65941/45 72 45 52 20 22000 51000 5800
50 BK5020 55941/50 87.3 50 58 20 28000 60000 5300
50 BK5025 5943/50 109 50 58 25 34500 80000 5300
55 BK5520 55941/55 93.8 55 63 20 29500 59900 4600
55 BK5528 85941/55 132 55 63 28 39090 98000 4600
60 BK6012
77 60 68 12 12400 29000 4100
60 BK6020 55941/60 105 60 68 20 30500 72000 4100
60 BK6032 85941/60 164 60 68 32 50000 131000 4100
4 HK0408TN 37941/4 1.6 4 8 8 1540 1070 40000
5 HK0509 47941/5 2 5 9 9 2200 1790 36000
5 HK05x08.5x07 0 0 5 8.5 7 0 0 0
5 HK05x09x08 0 0 5 9 8 2200 1790 36000
6 HK0607 27941/6 1.8 6 10 7 1600 1400 30000
6 HK0608 37941/6 2.1 6 10 8 1830 1550 32000
6 HK0609 47941/6 2.2 6 10 9 2650 2400 30000
6 HK0611
2.3 6 10 11 1700 1500 29000
6 HK06x12x08 Jun-41 2.5 6 12 8 2230 2010 33000
7 HK0708 0 0 7 11 8 2800 2150 27000
7 HK0709 47941/9 2.3 7 11 9 2800 2150 27000
7 HK07x12x08 0 2.2 7 12 8 3300 3220 37000
7 HK07x12x09 0 2.4 7 12 9 3400 3150 37000
8 HK0808 37941/8 2.7 8 12 8 2550 2400 21000
8 HK0810 57941/8 3 8 12 10 3700 3450 21000
8 HK08x14x10 27942/8 5.35 8 14 10 3800 3950 25000
8 HK08x14x12 37942/8 6.6 8 14 12 4100 4320 25000
9 HK0908 37941/9 3 9 13 8 3650 4050 25000
9 HK0910 57941/9 4 9 13 10 4050 4250 25000
9 HK0911 0 4.1 9 13 11 4300 4700 25000
9 HK0912 67941/9 4.6 9 13 12 5000 6000 25000
9 HK09x15x10 27942/9 5.6 9 15 10 5300 6300 25000
10 HK1010 57941/10 4.1 10 14 10 3900 4800 19000
10 HK1012 67941/10 4.8 10 14 12 5000 6300 19000
10 HK1015 0 6 10 14 15 6700 7800 19000
10 HK10x13x08 0 3.5 10 13 8 4100 4800 20000
10 HK10x15x15 644900 6.5 10 15 15 6800 8800 18000
10 HK10x16x10 0 6.5 10 16 10 6800 8800 18000
10 HK10x16x12 DB1012 7.5 10 16 12 6800 8800 18000
10 HK10x16x15 Oct-42 11 10 16 15 6800 8800 19000
10 HK10x17x15 0 11.5 10 17 15 7200 8000 19000
10 HK10x18x12 0 8.5 10 18 12 7200 8000 19000
12 HK1208 37941/12 3.3 12 16 8 7200 8000 19000
12 HK1210 57941/12 4.6 12 16 10 4150 5800 19000
12 HK1212 67941/12 5.6 12 16 12 3800 5100 15000
12 HK12x17x12 Dec-41 7.5 12 17 12 5100 7000 15000
12 HK12x17x15 Dec-42 9.5 12 17 15 5100 7000 15000
12 HK12x17x18 Dec-43 11 12 17 18 5100 7000 15000
12 HK12x18x12 37942/12 9.1 12 18 12 5500 6300 17000
12 HK12x18x14 67942/12 10.6 12 18 14 6500 6300 15000
12 HK12x19x12 0 10 12 19 12 6800 7400 15000
13.5 HK13.5x19x12 0 0 13.5 19 12 0 0 16000
13.5 HK13.5x20x12 7941/13.5 10.8 13.5 20 12 6250 7590 16000
13 HK1311
8.5 13 19 11 6300 6300 14000
13 HK1312
8.9 13 19 12 6200 7100 17000
14 HK1410 27941/14 8.3 14 20 10 6700 7000 16000
14 HK1412 37941/14 10.5 14 20 12 6800 7500 16000
14 HK1416 57941/14 13.9 14 20 16 7300 9000 14000
14 HK1418 0 0 14 20 0 0 0 14000
15 HK1512 37941/15 11.1 15 21 12 7000 8400 14000
15 HK1514 47941/15 12.7 15 21 14 8500 10400 13000
15 HK1515
14.2 15 21 15 9100 11400 13000
15 HK1516 57941/15 15 15 21 16 9800 11400 14000
15 HK1522 sz-439 20.4 15 21 22 10400 16500 14000
15 HK15x20x12 7941/15 8.4 15 20 12 5800 6000 14000
15 HK15x20x16 7942/15 11.4 15 20 16 6000 6200 14000
15 HK15x20x20 7943/15 13.8 15 20 20 6100 6400 14000
15 HK15x22x12 7948/15 12.5 15 22 12 14300 18400 13000
15 HK15x22x12.5 7948/15K 13.5 15 22 12.5 14300 18400 13000
16 HK1612 37941/16 11.7 16 22 12 7100 9200 14000
16 HK1614 47941/16 14.4 16 22 14 8800 9900 12000
16 HK1616 57941/16 15.8 16 22 16 10100 14300 14000
16 HK1617 SZ-435 18 16 22 17 12900 17200 12000
16 HK1622 87941/16 21.7 16 22 22 11100 17400 14000
16 HK16x21x06 0 5.5 16 21 6 4200 5300 12000
16 HK16x21x09 0 7.5 16 21 9 4400 5600 12000
17 HK1712 37941/17 12.2 17 23 12 6900 9300 13000
17 HK1714 7941/17 14 17 23 14 6800 10200 10000
17 HK1716 57941/17 15.9 17 23 16 8500 12500 10000
17 HK1718 7942/17 19 17 23 18 9500 10600 10000
17 HK1722 7943/17 17 17 23 22 0 0 0
17 HK17x21.5x15 17btm15 10 17 21.5 15 6300 8600 11000
17 HK17x24x15 0 17 17 24 15 11200 12800 10000
17 HK17x25x14 37942/17K 17.7 17 25 14 13100 14700 10000
17 HK17x25x15.5 0 20 17 25 15.5 9320 10400 10000
17 HK17x25x18 57942/17K 23.5 17 25 18 9500 10600 11000
18 HK1812 37941/18 13.1 18 24 12 7100 9900 12000
18 HK1816 57941/18 17.5 18 24 16 10650 15300 12000
18 HK18x24x20 0 18 18 24 20 0 0 0
19 HK19x27x16 TA1916 23 19 27 16 8100 9500 10500
20 HK2010 27941/20 11.8 20 26 10 5900 7200 10000
20 HK2011
12 20 26 11 7500 9200 9000
20 HK2012 37941/20 14.1 20 26 12 7600 10100 10000
20 HK2014 47941/20 15.7 20 26 14 9700 18100 9000
20 HK2016 57941/20 19.3 20 26 16 11700 29100 10000
20 HK2018 67941/20 23.3 20 26 18 7900 12800 9000
20 HK2020 7942/20 24.1 20 26 20 13700 24000 10000
20 HK2025 7943/20 28 20 26 25 9100 14800 9900
20 HK2030
34.7 20 26 30 21800 40000 10100
20 HK20x27x18 0 78 20 27 18 26000 47200 9900
20 HK20x27x20 0 82 20 27 20 26300 47800 9900
20 HK20x27x30 0 94 20 27 30 28500 48800 9900
20 HK20x28x16 47942/20 28.5 20 28 16 29600 19800 9900
20 HK20x29x18 0 41 20 29 18 30900 54600 9900
22 HK2210 27941/22 12.3 22 28 10 7200 9500 10010
22 HK2212 37941/22 15 22 28 12 8100 10400 10010
22 HK2216 57941/22 20.9 22 28 16 11400 18100 10010
22 HK2220 77941/22 26.2 22 28 20 14500 25000 10010
22 HK2230
32 22 28 30 17500 30400 9000
22 HK22x28x7.5TN 0 8.8 22 28 7.5 5200 7000 10010
22 HK22x29x25 0 37 22 29 25 18100 31500 9000
22 HK22x29x30 0 43 22 29 30 19400 33100 9000
22 HK22x30x14 37942/22 21.9 22 30 14 19800 34000 9000
24 HK24x30x7.5TN 0 10.6 24 30 7.5 5800 7200 10000
25 HK2512 27941/25 20 25 32 12 10000 14200 9000
25 HK2514 37941/25 21.9 25 32 14 13600 18700 9000
25 HK2516 7941/25 27.3 25 32 16 13600 20000 9000
25 HK2518 57941/25 28.2 25 32 18 17500 25800 9000
25 HK2520 67941/25 34.1 25 32 20 17900 30000 9000
25 HK2525 7943/25 40 25 32 25 22200 36700 9000
25 HK2526
44.8 25 32 26 22500 42000 9000
25 HK2538 87941/25 64.7 25 32 38 30000 58000 9000
25 HK25x33x10 0 17 25 33 10 34800 69600 9000
25 HK25x33x15 0 27.4 25 33 15 35700 70000 9000
25 HK25x35x20 57942/25 44.9 25 35 20 36100 78650 9000
28 HK2816 47941/28 30.1 28 35 16 15400 22500 8700
28 HK2818 57941/28 31.7 28 35 18 18500 29300 8700
28 HK2820 67941/28 37.6 28 35 20 18900 32000 8700
30 HK3012 27941/30 24 30 37 12 10100 16200 8100
30 HK3016 47941/30 32 30 37 16 15200 27000 8100
30 HK3018 57941/30 33.6 30 37 18 19200 31500 8100
30 HK3020 67941/30 40.1 30 37 20 19700 33500 8100
30 HK3026
52.9 30 37 26 24000 50000 8100
30 HK3038
76.1 30 37 38 32500 74000 8100
30 HK30x38x12 27941/30K 28 30 38 12 38100 80000 8100
30 HK30x38x16 7941/30 32.7 30 38 16 39000 82000 8100
30 HK30x38x24 7942/30 49 30 38 24 39910 88800 8100
30 HK30x38x32 7943/30 69 30 38 32 38890 88700 8100
32 HK3224 77941/32 50.7 32 38 24 25500 52000 7300
32 HK3232 97941/32 66.4 32 39 32 22600 54300 7100
32 HK32x19x16 0 0 32 19 16 0 0 0
32 HK32x38x11 0 17 32 38 11 19700 43200 7800
32 HK32x40x32 7943/32 72.7 32 39 32 27990 59890 7100
32 HK32x41x16 0 0 32 41 16 0 0 0
35 HK3512 27941/35 27.7 35 40 12 12100 19300 7100
35 HK3516 47941/35 36.9 35 42 16 15700 27500 7100
35 HK3520 67941/35 46.1 35 42 20 20800 41000 7100
35 HK35x43x16 7941/35 37 35 42 16 24200 47100 7100
35 HK35x43x25 7942/35 60.5 35 43 25 24440 48200 6200
35 HK35x43x32 7943/35 80 35 43 32 24870 48880 6200
35 HK35x45x12 0 31 35 45 12 24870 48880 6200
36 HK36x42x12 0 23 36 42 12 15000 21000 6200
38 HK38x48x30 0 102 38 48 30 16100 24100 6000
40 HK4012 27941/40 31.1 40 47 12 14000 24300 6300
40 HK4016 47941/40 41.4 40 47 16 20000 38500 6300
40 HK4020 67941/40 51.8 40 47 20 25500 52000 6300
40 HK40x50x32 7942/40 114.3 40 50 32 23000 42000 6000
40 HK40x50x38 7943/40 130.8 40 50 38 24100 43000 6000
45 HK4512 27941/45 34.8 45 52 12 12900 22500 5800
45 HK4516 47941/45 46.2 45 52 16 19300 38000 5800
45 HK4520 67941/45 56 45 52 20 22000 51000 5800
45 HK45x55x38 7943/45 135 45 55 38 27600 61000 5300
50 HK5012 27941/50 44.2 50 58 12 23600 57200 5300
50 HK5020 57941/50 72 50 58 20 28000 60000 5300
50 HK5025 7943/50 90.1 50 58 25 34500 80000 5300
50 HK50x57x16 0 51.2 50 57 16 15200 32500 5300
50 HK50x60x38 0 140 50 60 38 27770 63100 4600
55 HK5520 57941/55 78 55 63 20 29500 59900 4600
55 HK5525 77941/55 109 55 63 25 33200 69980 4600
55 HK5528 87941/55 111 55 63 28 39090 98000 4600
60 HK6012
49.2 60 68 12 12400 29000 4100
60 HK6020 57941/60 86 60 68 20 30500 72000 4100
60 HK6032 87941/60 136 60 68 32 50000 131000 4100
9.52 M-681
4.3 9.52 14.29 12.7 4581 5515 29900
15.88 SCE1012
20 15.88 22.22 19.05 10800 13440 18000
15.88 SCE108
12 15.88 22.22 12.7 8559 12060 18000
19.05 SCE1212
21 19.05 25.4 19.05 14144 21706 16000
19.05 SCE1214PP
23 19.05 25.4 22.22 16140 23800 16000
25.4 SCE1616PP
44 25.4 31.75 25.4 22729 43501 11000
15.88 SCH1012
20 15.88 22.22 19.05 10800 13440 18000
15 TA1515
0 15 22 15 0 11400 0
15 TA1515Z
0 15 22 15 0 11400 0

ABOUT MBY

PRODUCTS

INDUSTRIES

GET IN TOUCH

FAX:0086-581-82609444
Email:info@mby-bearing.com
Web:www.mby-bearing.com
No 198,Minfeng Road,Beitang District,Wuxi,China.
© Copyright By Wuxi MBY Bearing Technology Co.,Ltd  2016

Leave a Message
