FC/FCB Series Needle Roller Bearing

Product Description

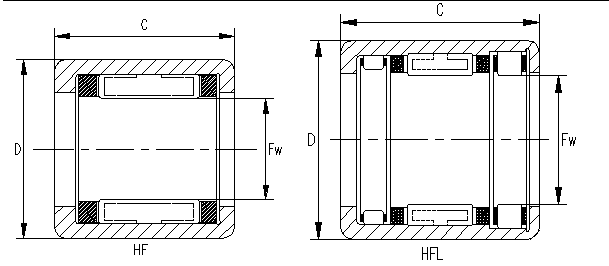

The outer ring needle roller clutch (one-way bearing) can be used as a converter, a check device, and a overrunning clutch. HF (needle roller clutch): composed of stamping outer ring and plastic cage; cage can have plastic reed or stainless steel reed to guide needle roller; outer ring inclined raceway and needle roller as locking device. HFL (clutch and bearing assembly): support bearings are mounted on both sides of the needle clutch and bear radial load. The needle roller and plastic cage assembly are used as supporting bearings.

Bearing Number	Weight/kg	Main Size
		Fw	D	C	Torque
FC4K	1	4	8	6	0.34
FC6	3	6	10	12	1.76
FC6K	3	6	10	12	1.76
FC8	4	8	14	12	5.3
FCL8K	3.5	8	12	12	5
FC10	4.8	10	16	12	6
FCL10K	4	10	14	12	5.3
FC12	11	12	18	16	12.2
FC14K	13	14	20	16	17.3
FC16	14	16	22	16	20.5
FC20	17	20	26	16	28.5
FC25	30	25	32	20	66
FC30	36	30	37	20	90
FC35	40	35	42	20	121
FCB8	10	14	14	20	5
FCB10	15	16	16	20	10
FCB12	18	18	18	26	12.2
FCB16	22	22	22	26	20.5
FCB20	27	26	26	26	28.5
FCB25	44	32	32	30	66
FCB30	51	37	37	30	90
FCB35	58	42	42	30	121

(1) limit speed is effective for grease and oil lubrication. nA refers to the limit speed of the outer ring rotation.
(2) To keep the needle roller in the locked position, the retainer is provided with a stainless steel spring.
Limited speed of oil and grease lubrication are effective, width deviation -0mm ~ -0.25mm, special requirements when ordering instructions.
