KBB - Shaft Supporting Housing

Product Description

MBY Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small. By ball’s rotating with a quite small friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine, materialization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.



Note：Swipe left or right to view the complete table!

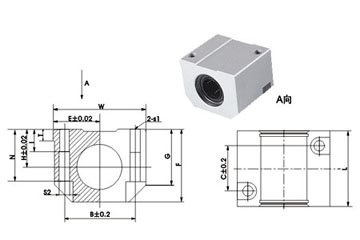

Bearing Code	Shaft Diameter	Main Dimensions							Mounting Dimension							Weight
		H	E	W	L	F	G	T	N	B	C	S1	S2	I	K	（Kg)
KBB16	16	22	26.5	53	43	42	32	7	30	40	26	M6	5.3	13	6.5	0.19
KBB20	20	25	30	60	54	50	39	7.5	34	45	32	M8	6.6	18	7.5	0.31
KBB25	25	30	39	78	67	60	48	8.5	40	60	40	M10	8.4	22	9	0.86
KBB30	30	35	43.5	87	79	70	57	9.5	48	68	45	M10	8.4	22	9.5	0.91
