Model: Long Cylindrical Roller and Cage Assemblies
Brand: MBY
Quantity:

Long Cylindrical Roller and Cage Assemblies

Product Description
MBY® Needle roller bearings are roller bearings with cylindrical rollers that are small in diameter but long in length (L/D≥2.5). MBY® Needle roller bearings have a high radial load carrying capacity. And since they have a low cross section, needle roller bearings are extremely suitable for bearing applications where the radial space is limited.

MBY® offers a wide range of needle roller bearings including needle roller & cage assemblies, drawn cup and solid needle roller bearings. They can also be specified as cam followers and track roller bearings by applications. The major application markets include automotive, consumer product and general industrial goods.


Note:Swipe left or right to view the complete table!

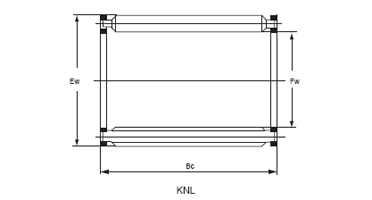

Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions
Current Orignal Code Fw Ew Bc
mm g mm
19.051 KNL19.051x28.588x36.75 64903 70 19.051 28.588 36.75
19.051 KNL19.051x28.588x43.25 64904 80 19.051 28.588 43.25
20.612 KNL20.612x33.325x35 864904 96 20.612 33.325 35
20.638 KNL20.638x33.338x36.75 64705 92 20.638 33.338 36.75
20 KNL20x30.2x18 64704 40 20 30.2 18
25.4 KNL25.4x41.2x60.4 64905 265 25.4 41.2 60.4
25 KNL25x38x24.7 64805 82 25 38 24.7
27.71 KNL27.71x42.825x44.1 64906 183 27.71 42.825 44.1
28.575 KNL28.575x41.275x34.925 64806 122 28.575 41.275 34.925
28.578 KNL28.575x41.275x40 94626 155 28.578 41.275 40
29.975 KNL29.975x42x31 9148/30 81 29.975 42 31
29.975 KNL29.975x42x44.1 64706 160 29.975 42 44.1
31.75 KNL31.75x44.45x31.75 864807 115.8 31.75 44.45 31.75
31.9 KNL31.9x41.46x32 31.9x41.46x32 95 31.9 41.46 32
32 KNL32x50x45 30643/32 272 32 50 45
32 KNL32x52x49 64907 329 32 52 49
37.96 KNL37.96x53.9x36 37.96x53.9x36 208.3 37.96 53.9 36
40 KNL40x60x30 10643/40 248 40 60 30
52.412 KNL52.412x71.425x42.3 864911 441 52.412 71.425 42.3
65 KNL65x89x58.9 864913 943 65 89 58.9
74 KNL74x106x57.9 864915 1563 74 106 57.9
