Model: Miniature Ball Bearings With Flange
Brand: MBY
Quantity:

Miniature Ball Bearings With Flange

Product Description

  MBY precision deep groove ball bearings are designed for high precision, low noise, small vibration, high reliability and long life. They are mainly used in various types of electric motors. They are also known as EMQ (Electric Motor Quality) bearings.

EMQ bearings are widely used in household appliances, toys, electric power tools, car motors and other fields. With optimal design, high reliability heat treatment, precision manufacturing processes and high-grade grease, these products perform better on reliability, vibration and noise levels than standard products making them more suitable for electric motor applications. These products can also be applied to most gearbox applications as well.

MBY precision deep groove ball bearings include a variety of shields and seals to meet the many different requirements customers demand. For detailed specification, please feel free to contact MBY.

MBY precision deep groove ball bearings are good quality products with excellent performance. Because of their high precision, high rotating speed, high reliability, low friction and low noise, they are widely used in areas of machine tools, measuring instruments, office machinery, household appliances, various types of electric motors, industrial automation control, etc.

At the same time, MBY can design and manufacture precision deep groove ball bearings according to your requirements with special functions such as mute, special sealing, electric insulation, ultra-high speed, high/low temperature resistance and etc. And MBY will sincerely provide superior application service and professional technical advice to customers.



Note:Swipe left or right to view the complete table!

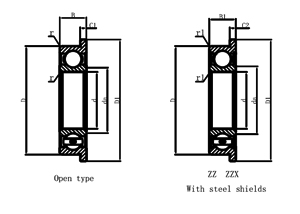

Bearing Designation Boundary Dimensions Basic Load Rating Limiting Speed Flange dimensions Shoulder Dimensions Mass
(mm) (kN) (rpm) (mm) (mm) (g)


Grease oil


Open Type With Steel d D B B1 r r1 Cr Cor Open Type Open Type D1 D2 C1 C2 da ra Approx
Shields (min.) (min.) (ZZ,ZZX) (Z,ZX) (min.) (max.)
F604 F604 ZZ 4 12 4 4 0.2 0.2 0.97 0.36 53000 63000 13.5 13.5 1 1 5.6 0.2 2.3
F605 F605 ZZ 5 14 5 5 0.2 0.2 1.3 0.49 50000 60000 16 16 1 1 6.6 0.2 3.9
F606 F606 ZZ 6 17 6 6 0.3 0.3 1.95 0.74 43000 51000 19 19 1.2 1.2 8 0.3 6.3
F607 F607 ZZ 7 19 6 6 0.3 0.3 2.6 1.05 40000 47000 22 22 1.5 1.5 9 0.3 8.7
F608 F608 ZZ 8 22 7 7 0.3 0.3 3.3 1.35 34000 41000 25 25 1.5 1.5 10 0.3 13
F609 F609 ZZ 9 24 7 7 0.3 0.3 3.35 1.4 33000 40000 27 27 1.5 1.5 11 0.3 16
F623 F623 ZZ 3 10 4 4 0.15 0.15 0.64 0.23 52000 63000 11.5 11.5 1 1 4.2 0.15 1.8
F624 F624 ZZ 4 13 5 5 0.2 0.2 1.3 0.49. 44000 54000 15 15 1 1 5.6 0.2 3.3
F625 F625 ZZ 5 16 5 5 0.3 0.3 1.75 0.67 40000 49000 18 18 1 1 7 0.3 5.4
F626 F626 ZZ 6 19 6 6 0.3 0.3 2.6 1.05 35000 43000 22 22 1.5 1.5 8 0.3 9.2
F627 F627 ZZ 7 22 7 7 0.3 0.3 3.3 1.35 31000 37000 25 25 1.5 1.5 9 0.3 14
F633 F633 ZZ 3 13 5 5 0.2 0.2 1.3 0.49 44000 54000 15 15 1 1 4.6 0.2 3.4
F634 F634 ZZ 4 16 5 5 0.3 0.3 1.75 0.67 40000 49000 18 18 1 1 6 0.3 5.7
F635 F635 ZZ 5 19 6 6 0.3 0.3 2.6 1.05 35000 43000 22 22 1.5 1.5 7 0.3 9.7
F636 F636 ZZ 6 22 7 7 0.3 0.3 3.3 1.35 31000 37000 25 25 1.5 1.5 8 0.3 14
F637 F637 ZZ 7 26 9 9 0.3 0.3 4.55 1.95 26000 32000 29 29 2 2 9 0.3 26
F694 F694 ZZ 4 11 4 4 0.15 0.15 0.96 0.35 54000 65000 12.5 12.5 1 1 5.2 0.15 2
F695 F695 ZZ 5 13 4 4 0.2 0.2 1.3 0.49 50000 60000 15 15 1 1 6.6 0.2 2.5
F696 F696 ZZ 6 15 5 5 0.2 0.2 1.75 0.67 45000 54000 17 17 1.2 1.2 7.6 0.2 4.3
F697 F697 ZZ 7 17 5 5 0.3 0.3 1.6 0.71 42000 50000 19 19 1.2 1.2 9 0.3 5.8
F698 F698 ZZ 8 19 6 6 0.3 0.3 2.25 0.91 39000 46000 22 22 1.5 1.5 10 0.3 8.3
F699 F699 ZZ 9 20 6 6 0.3 0.3 2.45 1.05 35000 42000 23 23 1.5 1.5 11 0.3 8.7
F602 F602 ZZ 2 7 2.8 3.5 0.15 0.15 0.39 0.13 67000 79000 8.5 8.5 0.7 0.9 3.2 0.15 0.6
F603 F603 ZZ 3 9 3 5 0.15 0.15 0.43 0.16 60000 72000 10.5 10.5 0.7 1 4.2 0.15 1
F68/2.5 F68/2.5 ZZ 2.5 6 1.8 2.6 0.1 0.1 0.19 0.06 85000 89000 7.1 7.1 0.5 0.8 3.3 0.1 0.2
F682 F682 ZZ 2 5 1.5 2.3 0.1 0.1 0.19 0.06 98000 110000 6.1 6.1 0.5 0.6 2.8 0.1 0.1
F683 F683 ZZ 3 7 2 3 0.15 0.15 0.31 0.11 66000 79000 8.1 8.1 0.5 0.8 4.2 0.1 0.4
F684 F684 ZZ 4 9 2.5 4 0.15 0.15 0.64 0.23 59000 70000 10.3 10.3 0.6 1 5.2 0.1 0.7
F685 F685 ZZ 5 11 3 5 0.15 0.15 0.97 0.36 53000 63000 12.5 12.5 0.8 1 6.2 0.15 1.1
F686 F686 ZZ 6 13 3.5 5 0.15 0.15 1.1 0.44 48000 57000 15 15 1 1.1 7.2 0.15 2.1
F687 F687 ZZ 7 14 3.5 5 0.15 0.15 1.15 0.51 45000 54000 16 16 1 1.1 8.2 0.15 2.4
F688 F688 ZZ 8 16 4 5 0.2 0.2 1.6 0.71 42000 50000 18 18 1 1.1 9.6 0.2 3.6
F689 F689 ZZ 9 17 4 5 0.2 0.2 1.35 0.66 39000 46000 19 19 1 1.1 10.6 0.2 3.9
F69/2.5 F69/2.5 ZZ 2.5 7 2.5 3.5 0.15 0.15 0.31 0.11 66000 79000 8.5 8.5 0.7 0.9 3.7 0.15 0.5
F692 F692 ZZ 2 6 2.3 3 0.15 0.1 0.33 0.1 86000 100000 7.5 7.5 0.6 0.8 3.2 0.1 0.3
F693 F693 ZZ 3 8 3 4 0.15 0.15 0.55 0.17 64000 76000 9.5 9.5 0.7 0.9 4.2 0.15 0.7
