Model: NAFU2 Series
Brand: MBY
Quantity:

NAFU2 Series

Product Description
MBY® Pillow blocks, the most commonly used type of mounted units, are housings which have a bearing fitted into them.
They are designed to provide shaft support where the mounting surface is parallel to the shaft axis.
Typically manufactured from cast iron or cast steel, the pillow block bearing housing has provisions to allow the housing to be bolted down snugly.

MBY® Pillow blocks are supplied in a variety of configurations, and are usually mounted in cleaner environments and generally are meant for lesser loads of general industry.
MBY® Pillow blocks are widely used in agriculture machine, conveyor system, construction machines, etc.
The insert bearings are the deep groove ball bearings with wide inner rings, it insert in housing  work as an unit bearings.

The housing are mainly casting or pressed steel.
The bearing unit are compact in design with perfect sealing devices .
they can align with easy during operation and can be conveniently mounted or dismounted.

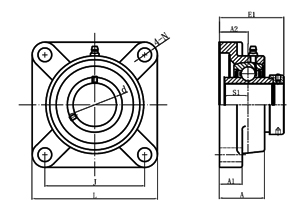

62

Note:Swipe left or right to view the complete table!
Unit No. Dimensions(mm) Bolt Used(mm) Bearing No. Housing No. Mass(kg)
d L J 2 1 A 1 N 1
NAFU202 15 76 54 15 11 25.5 38.4 11.5 13.9 M10 NA202 NF202 0.68
NAFU203 17 76 54 15 11 25.5 38.4 11.5 13.9 M10 NA203 NF203 0.66
NAFU204 20 86 63.5 19 15 29.5 45.5 11.5 17 M10 NA204 NF204 0.77
NAFU205 25 93 70 19 15 30 45.9 11.5 17.4 M10 NA205 NF205 0.95
NAFU206 30 106 82.5 20 16 32.5 50.1 11.5 18.2 M10 NA206 NF206 1.32
NAFU207 35 116 92 21 17 35 53.3 14 18.8 M12 NA207 NF207 1.77
NAFU208 40 129 101.5 24 17 39 58.6 14 21.4 M12 NA208 NF208 2.22
NAFU209 45 135 105 24 18 40 58.9 16 21.4 M14 NA209 NF209 2.63
NAFU210 50 143 111 28 20 45 66.1 18 24.6 M16 NA210 NF210 2.95
NAFU211 55 162 130 31 21 49 74.6 18 27.7 M16 NA211 NF211 4.1
NAFU212 60 175 143 34 22 53.5 80.8 18 30.9 M16 NA212 NF212 4.86
NAFU213 65 184 149 38 22 58 89.6 18 34.1 M16 NA213 NF213 5.9
NAFU214 70 188 152 38 23 60 89.6 18 34.1 M16 NA214 NF214 6.45
NAFU215 75 200 159 41 24 62 95.8 18 37.3 M16 NA215 NF215 7.55
NAFU216 80 207 165 42 25 63 99.9 22 37.3 M20 NA216 NF216 8.65
