Model: PHS4
Brand: MBY
Quantity:

PHS4 Rod end Spherical Plain Bearings

Product Description

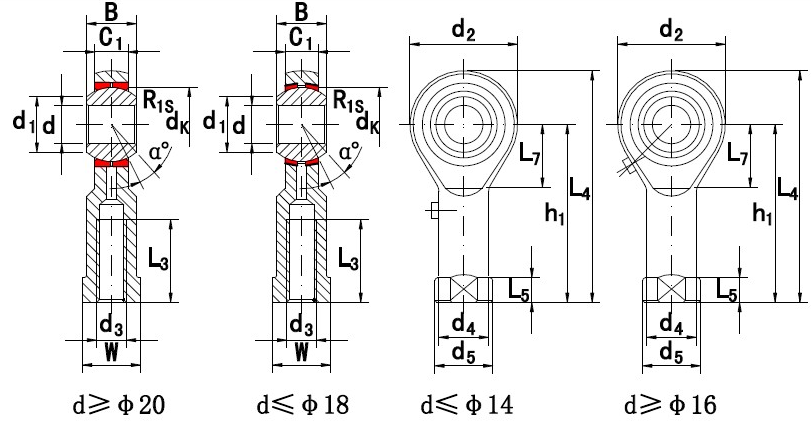

571


Type Radial spherical plain bearings
items PHS4
Belong Plain Bearings
PHS 4 size:
d 4 mm
L4 31 mm
L5 4 mm
dL 9,5 mm
L3 12 mm
d1 6,5 mm
d2 14 mm
d3 8 mm
dk 9,525 / mm
h1 24 mm
r1 min. 0,2 mm
B 7 mm
C1 5,3 mm
W 8 mm
Thread (G) M 4×0,7
Weight 0,0119 Kg
Basic dynamic load rating (C) 2,48 kN
Basic static load rating (C0) 4,68 kN
