POS5 Spherical Plain Bearings

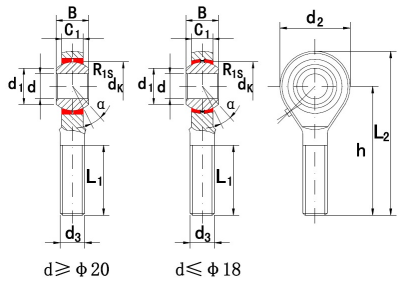

Bearing dimensions and specification in brand catalogue :

d - 5 mm

L2 - 41 mm

d1 - 7,7 mm

d2 - 16 mm

dk - 11,112 / mm

h - 33 mm

r1 min. - 0,2 mm

B - 8 mm

C1 - 6 mm

L1 - 20 mm

Thread (G) - M 5×0,8

Weight - 0,0125 Kg

Basic dynamic load rating (C) - 3,27 kN

Basic static load rating (C0) - 3,34 kN
