Model: Radial spherical plain bearings Maintenance type
Brand: MBY
Quantity:

Radial spherical plain bearings Maintenance type

Product Description
MBY® Spherical plain bearings are plain bearings, inner and outer rings of which have sphered sliding surfaces. MBY® Spherical plain bearings are designed for the transmission of radial, axial and combined loads, including shock loads in the joints of machine parts and mechanisms where it is necessary to provide with spatial complex or vibrating, rocking, rotating and simple movements at low speeds. Radial, angular contact and thrust spherical bearings are produced depending on the nature of transmitted loads.

All MBY® Spherical plain bearings can be divided into two groups according to the method of the working surfaces lubrication.
There are bearings requiring the lubrication and self-lubricating bearings the sliding surfaces of which are made of special materials. The latter are used in the units with higher durability requirements, or when there are difficulties in supports maintenance when it is unreasonable to use lubrication requiring bearings.

The bearings with protective contact seals are manufactured to protect sliding surfaces from the environmental effects and to keep the lubricant in.
When choosing a type of spherical plain bearing, it is necessary to take into account many factors comprising a number of contradictions to be resolved or optimally balanced
-Outer ring with single split in axial direction.
-Lubrication grooves and holes in the outer and inner rings of type ES.
-Outer ring of type 2RS with lip seals in both sides.
-Both outer and inner rings are properly phosphate treated.



53532

Note:Swipe left or right to view the complete table!
Part No. Dimensions /mm Load ratings KN Weight kg

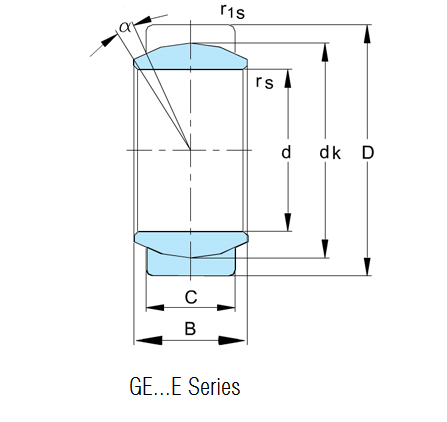

d D B C dk R1s R2s α dyn. stat.
min min C C0
GE5E 5 14 6 4 10 0.3 0.3 13 3.4 17 0.005
GE6E 6 14 6 4 10 0.3 0.3 13 3.4 17 0.004
GE8E 8 16 8 5 13 0.3 0.3 15 5.5 27.5 0.007
GE10E 10 19 9 6 16 0.3 0.3 12 8.15 40.5 0.011
GE12E 12 22 10 7 18 0.3 0.3 11 10.8 54 0.016
GE15ES     GE15ES2RS 15 26 12 9 22 0.3 0.3 8 17 85 0.025
GE16ES     GE16ES2RS 16 30 14 10 25 0.3 0.3 10 21.2 106 0.041
GE17ES     GE17ES2RS 17 30 14 10 25 0.3 0.3 10 21.2 106 0.041
GE20ES     GE20ES2RS 20 35 16 12 29 0.6 0.3 9 30 146 0.061
GE25ES     GE25ES2RS 25 42 20 16 35.5 0.6 0.6 7 48 240 0.11
GE30ES     GE30ES2RS 30 47 22 18 40.7 0.6 0.6 6 62 310 0.14
GE35ES     GE35ES2RS 35 55 25 20 47 0.6 1 6 80 400 0.22
GE40ES     GE40ES2RS 40 62 28 22 53 0.6 1 7 100 500 0.3
GE45ES     GE45ES2RS 45 68 32 25 60 0.6 1 7 127 640 0.41
GE50ES     GE50ES2RS 50 75 35 28 66 0.6 1 6 156 780 0.53
GE55ES     GE55ES2RS 55 85 40 32 74 0.6 1 7 200 1000 0.94
GE60ES     GE60ES2RS 60 90 44 36 80 1 1 6 245 1220 1
GE70ES     GE70ES2RS 70 105 49 40 92 1 1 6 315 1560 1.5
GE80ES     GE80ES2RS 80 120 55 45 105 1 1 6 400 2000 2.2
GE90ES     GE90ES2RS 90 130 60 50 115 1 1 5 490 2450 2.7
GE100ES   GE100ES2RS 100 150 70 55 130 1 1 7 610 3050 4.3
GE110ES   GE110ES2RS 110 160 70 55 140 1 1 6 655 3250 4.7
GE120ES   GE120ES2RS 120 180 85 70 160 1 1 6 950 4750 8
GE140ES   GE140ES2RS 140 210 90 70 180 1 1 7 1080 5400 11
GE160ES   GE160ES2RS 160 230 105 80 200 1 1 8 1360 6800 14
GE180ES   GE180ES2RS 180 260 105 80 225 1 1 6 1530 7650 18.5
GE200ES   GE200ES2RS 200 290 130 100 250 1.1 1.1 7 2120 10600 28
GE220ES   GE220ES2RS 220 320 135 100 275 1.1 1.1 8 2320 11600 35.51
GE240ES   GE240ES2RS 240 340 140 100 300 1.1 1.1 8 2550 12700 39.91
GE260ES   GE260ES2RS 260 370 150 110 325 1.1 1.1 7 3030 15190 51.54
GE280ES   GE280ES2RS 280 400 155 120 350 1.1 1.1 6 3570 17850 65.06
GE300ES   GE300ES2RS 300 430 165 120 375 1.1 1.1 7 3800 19100 78.07
