SME-L - Shaft Supporting Housing

Product Description

MBY Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small. By ball’s rotating with a quite small friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine, materialization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.



Note：Swipe left or right to view the complete table!

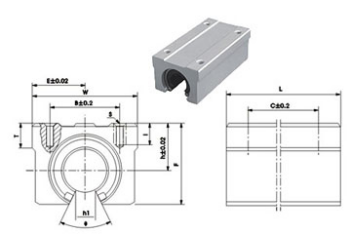

MBY Bearing Code	Shaft Diameter	Main Dimensions/mm								Mounting Dimension/mm				Weight(kg)
		h	E	W	L	F	T	h1	θ	B	C	S	l
SME16L	16	20	22.5	45	85	33	9	10	80	32	60	M5	12	0.29
SME20L	20	23	24	48	96	39	11	10	80	35	70	M6	12	0.51
SME25L	25	27	30	60	130	47	14	11.5	80	40	100	M6	12	0.98
SME30L	30	33	35	70	140	56	15	14	80	50	110	M8	18	1.45
SME40L	40	42	45	90	175	72	20	19	80	65	140	M10	20	2.48
