SWB-L-OP - Shaft Supporting Housing

Product Description

MBY Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small. By ball’s rotating with a quite small friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine, materialization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.



Note：Swipe left or right to view the complete table!

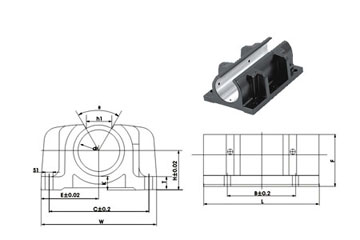

MBY Bearing Code	Shaft Diameter	Main Dimensions									Mounting Dimension			Weight(kg)
											B	C	S1
		H	E	W	L	F	θ	T	h1	K
SWB12L-OP	19.05	23.8	34.92	69.85	114.3	39.7	60	7.87	15.87	7.925	88.9	60.325	4.75	0.305
SWB16L-OP	25.4	30.15	41.28	82.55	152.4	50.8	60	9.53	19.3	10.3	114.3	73.03	5.56	0.612
SWB20L-OP	31.75	38.1	50.8	101.6	190.5	63.5	60	11.88	24.2	12.705	139.7	88.9	5.56	1.128
SWB24L-OP	38.1	44.45	60.32	120.65	228.6	74.6	60	12.7	29.5	14.29	165.1	104.78	7.16	1.778
SWB8L-OP	12.7	17.45	25.4	53	88.9	28.7	60	6.53	10.64	6.342	63.5	42.88	3.94	0.123
