SWD-L - Shaft Supporting Housing

Product Description

MBY Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small. By ball’s rotating with a quite small friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine, materialization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.



Note：Swipe left or right to view the complete table!

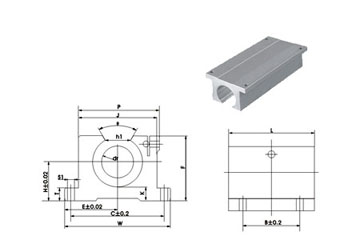

MBY Bearing Code	Shaft Diameter	Main Dimensions								Mounting Dimension						Weight(kg)
										K	J	P	B	C	S1
		H	E	W	L	F	θ	T	h1
SWD10L	15.875	22.22	31.75	63.5	101.6	36.53	60	7.11	13.49	7.942	44.5	46.04	28.57	53.97	4.75	0.288
SWD12L	19.05	23.8	34.92	69.85	114.3	39.7	60	7.87	15.87	7.925	48.41	49.98	31.75	60.325	4.75	0.379
SWD16L	25.4	30.15	41.27	82.55	152.4	50.8	60	9.65	19.3	10.3	61.11	62.69	44.45	73.03	5.54	0.811
SWD20L	31.75	38.1	50.8	101.6	190.5	63.5	60	11.1	24.2	12.705	76.2	78.58	50.8	88.9	5.54	1.508
SWD24L	38.1	44.45	60.32	120.65	228.6	74.6	60	12.7	30.16	14.29	88.9	90.48	63.5	104.78	7.137	2.222
SWD8L	12.7	17.45	26.5	53	88.9	28.7	60	6.53	10.64	6.342	35.75	36.5	25.4	42.88	3.96	0.165
