Model: Sealed Drawn Cup Needle Roller Bearings
Brand: MBY
Quantity:

Sealed Drawn Cup Needle Roller Bearings

Product Description
MBY® Needle roller bearings are roller bearings with cylindrical rollers that are small in diameter but long in length (L/D≥2.5). MBY® Needle roller bearings have a high radial load carrying capacity. And since they have a low cross section, needle roller bearings are extremely suitable for bearing applications where the radial space is limited.

MBY® offers a wide range of needle roller bearings including needle roller & cage assemblies, drawn cup and solid needle roller bearings. They can also be specified as cam followers and track roller bearings by applications. The major application markets include automotive, consumer product and general industrial goods.


Note:Swipe left or right to view the complete table!

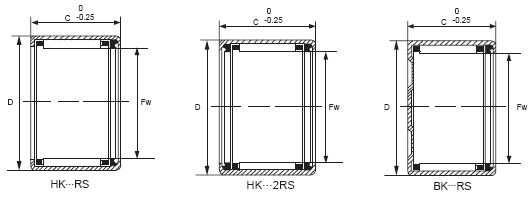

Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating Limiting Speed
Current Fw D C Cr Dynamic Cor Static Oil
mm g mm N rpm
14 BK1414 RS 14.1 14 20 14 6100 7500 11000
15 BK1514 RS 14.4 15 21 14 6800 8800 10000
16 BK1614 RS 15.3 16 22 14 7200 9200 10000
20 BK2018 RS 24.4 20 26 18 12700 20100 7800
25 BK2518 RS 35.3 25 32 18 13600 20000 6900
8 HK0810 RS 2.9 8 12 10 2250 2100 19000
8 HK0812 2RS 3.5 8 12 12 2250 2100 19000
10 HK1012 RS 4.2 10 14 12 4100 5000 19000
10 HK1014 2RS 5.2 10 14 14 4100 5000 15000
12 HK1214 RS 10.7 12 18 14 6100 7000 15000
12 HK1216 2RS 11.5 12 18 16 6100 7000 12000
13 HK13x19x12RS 8.9 13 19 12 6800 7580 12000
14 HK1414 RS 12 14 20 14 6100 7500 13000
14 HK1416 2RS 14 14 20 16 6100 7500 11000
15 HK1514 RS 12.6 15 21 14 6800 8800 11000
15 HK1516 2RS 14.3 15 21 16 6800 8800 10000
15 HK1518 RS 16 15 21 18 9500 11400 10000
15 HK1520 2RS 18 15 21 20 9500 11400 10000
16 HK1614 RS 15.1 16 22 14 7200 9200 10000
16 HK1616 2RS 15.1 16 22 16 7200 9200 10000
16 HK1620 2RS 16.8 16 22 20 9900 12300 10000
16 HK1625 2RS 0 16 22 25 9900 12300 10000
17 HK17x25x14RS 17.7 17 25 14 8000 9800 10000
17 HK17x25x15.5RS 20 17 25 15.5 9320 10400 13000
17 HK17x25x18RS 23.5 17 25 18 10500 12600 13000
17 HK17x25x20RS 26.2 17 25 20 11600 13200 13000
18 HK1814 RS 15.1 18 24 14 7800 9900 13000
18 HK1816 2RS 17 18 24 16 7800 9900 9200
9 HK19x13x12RS 4 9 13 12 3800 4300 19000
20 HK2012 RS 11.7 20 26 12 9500 11900 9200
20 HK2016 2RS 18.8 20 26 16 8000 10100 9000
20 HK2018 RS 21.4 20 26 18 12700 20100 8200
20 HK2020 2RS 23.5 20 26 20 12700 20100 7800
20 HK20x29x18RS 28.8 20 29 18 8700 9980 7800
22 HK2212 RS 14 22 28 12 8310 10000 9000
22 HK2214 RS 18.3 22 28 14 9000 12400 7800
22 HK2216 2RS 20.3 22 28 16 9000 12400 7800
22 HK2218 RS 23.5 22 28 18 10400 20100 7800
22 HK2220 2RS 25.5 22 28 20 10400 20100 7800
25 HK2516 2RS 27.3 25 32 16 9800 13200 6900
25 HK2518 RS 31 25 32 18 13600 20000 6900
25 HK2520 2RS 33.1 25 32 20 13600 20000 6900
25 HK2524 2RS 39.7 25 32 24 17900 30000 6900
25 HK2530 2RS 47.3 25 32 30 24500 43000 6900
28 HK2820 2RS 36.9 28 35 20 11400 22500 5300
30 HK3016 2RS 28.5 30 37 16 10100 16200 5300
30 HK3018 RS 36.6 30 37 18 16200 26000 5300
30 HK3020 2RS 39.1 30 37 20 16200 26000 5300
30 HK3024 2RS 49.7 30 37 24 21000 38500 5300
35 HK3516 2RS 36.4 35 42 16 10100 20300 4900
35 HK3518 RS 37.4 35 42 18 16700 30500 4900
35 HK3520 2RS 41.1 35 42 20 16700 30500 4900
40 HK4016 2RS 41.2 40 47 16 11000 21300 4200
40 HK4018 RS 47.3 40 47 18 19000 30500 4200
40 HK4020 2RS 50.2 40 47 20 19000 30500 4200
45 HK4518 RS 54.2 45 52 18 20300 41000 3800
45 HK4520 2RS 57.4 45 52 20 20300 41000 3800
50 HK5022 RS 77.2 50 58 24 30000 61000 3200
50 HK5024 2RS 84 50 58 24 30000 61000 3200
