Model: Sealed Yoke Type Track Rollers Without Axial Guidance
Brand: MBY
Quantity:

Sealed Yoke Type Track Rollers Without Axial Guidance

Product Description
MBY® Needle roller bearings are roller bearings with cylindrical rollers that are small in diameter but long in length (L/D≥2.5). MBY® Needle roller bearings have a high radial load carrying capacity. And since they have a low cross section, needle roller bearings are extremely suitable for bearing applications where the radial space is limited.

MBY® offers a wide range of needle roller bearings including needle roller & cage assemblies, drawn cup and solid needle roller bearings. They can also be specified as cam followers and track roller bearings by applications. The major application markets include automotive, consumer product and general industrial goods.



Note:Swipe left or right to view the complete table!

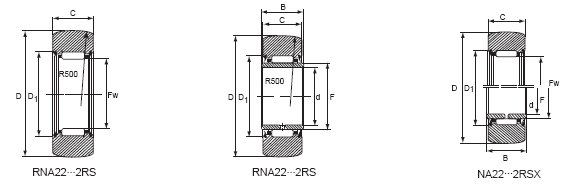

Shaft Diameter Bearing Designation and Approx Mass Boundary Dimensions Basic Load Rating Limiting Speed
Without IR Mass With IR Mass D d FW B C D1 Cr Dynamic Cor Static Grease
mm g g mm N rpm
30 RNA2200 2RS 52 NA2200 2RS 60 30 10 14 14 13.8 20 7600 8100 11000
30 RNA2200 2RSX 52 NA2200 2RSX 60 30 10 14 14 13.8 20 7600 8100 11000
32 RNA2201 2RS 57 NA2201 2RS 67 32 12 16 14 13.8 22 8500 9700 9500
32 RNA2201 2RSX 57 NA2201 2RSX 67 32 12 16 14 13.8 22 8500 9700 9500
35 RNA2202 2RS 60 NA2202 2RS 75 35 15 20 14 13.8 26 9600 12000 7000
35 RNA2202 2RSX 60 NA2202 2RSX 75 35 15 20 14 13.8 26 9600 12000 7000
40 RNA2203 2RS 94 NA2203 2RS 112 40 17 22 16 15.8 28 12000 16500 6000
40 RNA2203 2RSX 94 NA2203 2RSX 112 40 17 22 16 15.8 28 12000 16500 6000
47 RNA2204 2RS 152 NA2204 2RS 177 47 20 25 18 17.8 33 18500 21900 4600
47 RNA2204 2RSX 152 NA2204 2RSX 177 47 20 25 18 17.8 33 18500 21900 4600
52 RNA2205 2RS 179 NA2205 2RS 209 52 25 30 18 17.8 38 20100 26000 3500
52 RNA2205 2RSX 179 NA2205 2RSX 209 52 25 30 18 17.8 38 20100 26000 3500
62 RNA2206 2RS 284 NA2206 2RS 324 62 30 35 20 19.8 43 23000 28000 2800
62 RNA2206 2RSX 284 NA2206 2RSX 324 62 30 35 20 19.8 43 23000 28000 2800
72 RNA2207 2RS 432 NA2207 2RS 505 72 35 42 23 22.7 50 29800 46300 2200
72 RNA2207 2RSX 432 NA2207 2RSX 505 72 35 42 23 22.7 50 29800 46300 2200
80 RNA2208 2RS 530 NA2208 2RS 628 80 40 48 23 22.7 57 38200 57700 1700
80 RNA2208 2RSX 530 NA2208 2RSX 628 80 40 48 23 22.7 57 38200 57700 1700
85 RNA2209 2RS 545 NA2209 2RS 655 85 45 52 23 22.7 62 40300 63800 1600
85 RNA2209 2RSX 545 NA2209 2RSX 655 85 45 52 23 22.7 62 40300 63800 1600
90 RNA2210 2RS 563 NA2210 2RS 690 90 50 58 23 22.7 68 66000 26000 1300
90 RNA2210 2RSX 563 NA2210 2RSX 690 90 50 58 23 22.7 68 66000 26000 1300
19 RNA22/6 2RS 18 NA22/6 2RS 22 19 6 10 12 11.8 16 5000 4350 18000
19 RNA22/6 2RSX 18 NA22/6 2RSX 22 19 6 10 12 11.8 16 5000 4350 18000
24 RNA22/8 2RS 29 NA22/8 2RS 34 24 8 12 12 11.8 18 5500 5200 14000
24 RNA22/8 2RSX 29 NA22/8 2RSX 34 24 8 12 12 11.8 18 5500 5200 14000
