Model: Single Row 4 Point Contact Ball Slewing Bearing - 01 Series
Brand: MBY
Quantity:

Single Row 4 Point Contact Ball Slewing Bearing - 01 Series

Product Description
MBY slewing ring bearings can support radial, axial and tilting moment loads acting either singly or in combination and in any direction.Therefore, it is possible to replace the combination arrangement of radial and axial bearings by a single bearing,which will measurably reduce the overall cost and simplify the design. Slewing rings are sealed on both sides, lubricated with high quality grease,can be relubricated via lubrication nipples and are particularly easy to install.

MBY slewing ring bearings are available in many designs with internal, external or without gear.The low cross section, heavy load capacity and integrated gear make these bearings ideal structure components.Slewing ring bearings are widely used in construction machinery, mining equipment and many other industrial products.

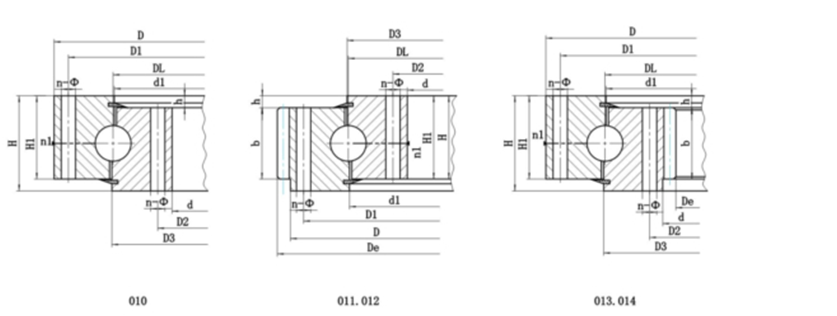

99


Note:Swipe left or right to view the complete table!
Bearing Code Configuration Size Mouting Size Structure Size Outer Teeth Inner Teeth Gear Data
D d H D1 D2 n dn1 dm1 L n1 H1 h b x m da Z da Z
dn2 dm2
no teeth outer teeth inner teeth mm mm mm mm mm mm

010.30.560 013.30.560 662 458 80 626 494 20 18 M16 32 4 70 10 60 0.5 5 689 135 427 86
010.20.200 011.20.200
280 120 60 248 152 12 16 M14 28 2 50 10 40 0 3 300 98

010.20.224 011.20.224
304 144 60 272 176 12 16 M14 28 2 50 10 40 0 3 321 105

010.20.250 011.20.250
330 144 60 298 202 18 16 M14 28 2 50 10 40 0 4 352 86

010.20.280 011.20.280
360 200 60 328 232 18 16 M14 28 2 50 10 40 0 4 384 94

010.25.315 011.25.315 013.25.315 408 222 70 372 258 20 18 M16 32 2 60 10 50 0 5 435 85 190 40
010.25.355 011.25.355 013.25.355 448 262 70 412 298 20 18 M16 32 2 60 10 50 0 5 475 93 235 49
010.25.400 011.25.400 013.25.400 493 307 70 457 343 24 18 M16 32 2 60 10 50 0 6 528 86 276 48
010.25.450 011.25.450 013.25.450 543 357 70 507 393 24 18 M16 32 2 60 10 50 0 6 576 94 324 56

011.25.500 013.25.500 602 398 80 566 434 20 16 M16 32 4 70 10 60 0.5 5 629 123 367 74
010.25.560 011.25.560 013.25.560 662 458 80 626 494 20 18 M16 32 4 70 10 60 0.5 5 689 135 427 86
010.25.630 011.25.630 013.25.630 732 528 80 696 564 24 18 M16 32 4 70 10 60 0.5 6 772.8 126 494.4 83
010.25.710 011.25.710 013.25.710 812 608 80 776 644 24 18 M16 32 4 70 10 60 0.5 6 850.8 139 572.4 96
010.30.1000 011.30.1000 013.30.1000 1122 878 100 1078 922 36 22 M20 40 6 90 10 80 0.5 10 1188 116 824 83
010.30.1120 011.30.1120 013.30.1120 1242 998 100 1198 1042 36 22 M20 40 6 90 10 80 0.5 10 1298 127 944 95
010.30.500 011.30.500 013.30.500 602 398 80 566 434 20 18 M16 32 4 70 10 60 0.5 5 629 123 367 74
010.30.630 011.30.630 013.30.630 732 528 80 696 564 24 18 M16 32 4 70 10 60 0.5 6 772.8 126 494.4 83
010.30.710 011.30.710 013.30.710 812 608 80 776 644 24 18 M16 32 4 70 10 60 0.5 6 850.8 139 572.4 96
010.30.800 011.30.800 013.30.800 922 678 100 878 722 30 22 M20 40 6 90 10 80 0.5 8 966.4 118 635.2 80
010.30.900 011.30.900 013.30.900 1022 778 100 978 822 30 22 M20 40 6 90 10 80 0.5 8 1062.4 130 739.2 93
010.35.1250 011.35.1250 013.35.1250 1390 1110 110 1337 1163 40 26 M24 48 5 100 10 90 0.5 12 1449.6 118 1048.8 88
010.35.1400 011.35.1400 013.35.1400 1540 1260 110 1487 1313 40 26 M24 48 5 100 10 90 0.5 12 1605.6 131 1192.8 100
010.35.1600 011.35.1600 013.35.1600 1740 1460 110 1687 1513 45 26 M24 48 5 100 10 90 0.5 14 1817.2 127 1391.6 100
010.35.1800 011.35.1800 013.35.1800 1940 1660 110 1887 1713 45 26 M24 48 5 100 10 90 0.5 14 2013.2 141 1573.6 113
010.40.1000 011.40.1000 013.40.1000 1122 878 100 1078 922 36 22 M20 40 6 90 10 80 0.5 10 1188 116 824 83
010.40.1120 011.40.1000 013.40.1000 1242 998 100 1198 1042 36 22 M20 40 6 90 10 80 0.5 10 1298 127 944 95
010.40.2000 011.40.2000 013.40.2000 2178 1825 144 2110 1891 48 33 M30 60 8 132 12 120 0.5 16 2268.8 139 1734.4 109
010.40.2240 011.40.2240 013.40.2240 2418 2065 144 2350 2131 48 33 M30 60 8 132 12 120 0.5 16 2492.8 153 1900.4 125
010.40.2500 011.40.2500 013.40.2500 2678 2325 144 2610 2391 56 33 M30 60 8 132 12 120 0.5 18 2768.4 151 2339.2 125
010.40.800 011.40.800 013.40.800 922 678 100 878 722 30 22 M20 40 6 90 10 80 0.5 8 966.4 118 635.2 80
010.40.900 011.40.900 013.40.900 1022 778 100 978 822 30 22 M20 40 6 90 10 80 0.5 8 1062.4 130 739.2 93
010.45.1250 011.45.1250 013.45.1250 1390 1110 110 1337 1163 40 26 M20 48 5 100 10 90 0.5 12 1449.6 118 1048.8 88
010.45.1400 011.45.1400 013.45.1400 1540 1260 110 1487 1313 40 26 M24 48 5 100 10 90 0.5 12 1605.6 131 1192.8 100
010.45.1600 011.45.1600 013.45.1600 1740 1460 110 1687 1513 45 26 M24 48 5 100 10 90 0.5 14 1817.2 127 1391.6 100
010.45.1800 011.45.1800 013.45.1800 1940 1660 110 1887 1713 45 26 M24 48 5 100 10 90 0.5 14 2013.2 141 1573.6 113
010.60.2000 011.60.2000 013.60.2000 2178 1825 144 2110 1891 48 33 M30 60 8 132 12 120 0.5 16 2268.8 139 1734.4 109
010.60.2240 011.60.2240 013.60.2240 2418 2065 144 2350 2131 48 33 M30 60 8 132 12 120 0.5 16 2492.8 153 1900.4 125
010.60.2500 011.60.2500 013.60.2500 2678 2325 144 2610 2391 56 33 M30 60 8 132 12 120 0.5 18 2768.4 151 2339.2 125
010.60.2800 011.60.2800 013.60.2800 2978 2625 144 2910 2691 56 33 M30 60 8 132 12 120 0.5 18 3074.4 168 2527.2 141
010.60.2800 011.60.2800 013.60.2800 2978 2625 144 2910 2691 56 33 M30 60 8 132 12 120 0.5 18 3074.4 168 2527.2 141
010.75.3150 011.75.3150 013.75.3150 3376 2922 174 3686 3014 56 45 M42 84 8 162 12 120 0.5 20 3476 171 2828 142
010.75.3150 011.75.3150 013.75.3150 3376 2922 174 3686 3014 56 45 M42 84 8 162 12 120 0.5 20 3476 171 2828 142

012.25.500 014.25.500 602 398 80 566 434 20 16 M16 32 4 70 10 60 0.5 6 628.8 102 368.4 62
010.25.560 012.25.560 014.25.560 662 458 80 626 494 20 18 M16 32 4 70 10 60 0.5 6 688.8 132 428.4 72
010.25.630 012.25.630 014.25.630 732 528 80 696 564 24 18 M16 32 4 70 10 60 0.5 8 774.4 94 491.2 62
010.25.710 012.25.710 014.25.710 812 608 80 776 644 24 18 M16 32 4 70 10 60 0.5 8 854.4 104 571.2 72
010.30.1000 012.30.1000 014.30.1000 1122 878 100 1078 922 36 22 M20 40 6 90 10 80 0.5 12 1185.6 95 820.8 69
010.30.1120 012.30.1120 014.30.1120 1242 998 100 1198 1042 36 22 M20 40 6 90 10 80 0.5 12 1305.6 106 940.8 79
010.30.500 012.30.500 014.30.500 602 398 80 566 434 20 18 M16 32 4 70 10 60 0.5 6 628.8 102 368.4 62

012.30.560 014.30.560 662 458 80 626 494 20 18 M16 32 4 70 10 60 0.5 6 688.8 112 428.4 72
010.30.630 012.30.630 014.30.630 732 528 80 696 564 24 18 M16 32 4 70 10 60 0.5 8 774.4 94 491.2 62
010.30.710 012.30.710 014.30.710 812 608 80 776 644 24 18 M16 32 4 70 10 60 0.5 8 854.8 104 571.2 72
010.30.800 012.30.800 014.30.800 922 678 100 878 722 30 22 M20 40 6 90 10 80 0.5 10 968 94 634 64
010.30.900 012.30.900 014.30.900 1022 778 100 978 822 30 22 M20 40 6 90 10 80 0.5 10 1068 104 734 74
010.35.1250 012.35.1250 014.35.1250 1390 1110 110 1337 1163 40 26 M24 48 5 100 10 90 0.5 14 1453.2 101 1041.6 75
010.35.1400 012.35.1400 014.35.1400 1540 1260 110 1487 1313 40 26 M24 48 5 100 10 90 0.5 14 1607.2 112 1195.6 86
010.35.1600 012.35.1600 014.35.1600 1740 1460 110 1687 1513 45 26 M24 48 5 100 10 90 0.5 16 1820.8 111 1382.4 87
010.35.1800 012.35.1800 014.35.1800 1940 1660 110 1887 1713 45 26 M24 48 5 100 10 90 0.5 14 2012.8 123 1574.4 99
010.40.1000 012.40.1000 014.40.1000 1122 878 100 1078 922 36 22 M20 40 6 90 10 80 0.5 12 1185.6 95 820.8 69
010.40.1120 012.40.1000 014.40.1000 1242 998 100 1198 1042 36 22 M20 40 6 90 10 80 0.5 12 1305.6 106 940.8 79
010.40.2000 012.40.2000 014.40.2000 2178 1825 144 2110 1891 48 33 M30 60 8 132 12 120 0.5 18 2264.4 123 1735.2 97
010.40.2240 012.40.2240 014.40.2240 2418 2065 144 2350 2131 48 33 M30 60 8 132 12 120 0.5 18 2498.2 136 1987.2 111
010.40.2500 012.40.2500 014.40.2500 2678 2325 144 2610 2391 56 33 M30 60 8 132 12 120 0.5 20 2776 136 2228 112
010.40.800 012.40.800 014.40.800 922 678 100 878 722 30 22 M20 40 6 90 10 80 0.5 10 968 94 634 64
010.40.900 012.40.900 014.40.900 1022 778 100 978 822 30 22 M20 40 6 90 10 80 0.5 10 1068 104 734 74
010.45.1250 012.45.1250 014.45.1250 1390 1110 110 1337 1163 40 26 M20 48 5 100 10 90 0.5 14 1453.2 101 1041.6 75
010.45.1400 012.45.1400 014.45.1400 1540 1260 110 1487 1313 40 26 M24 48 5 100 10 90 0.5 14 1607.2 112 1195.6 86
010.45.1600 012.45.1600 014.45.1600 1740 1460 110 1687 1513 45 26 M24 48 5 100 10 90 0.5 16 1820.8 111 1382.4 87
010.45.1800 012.45.1800 014.45.1800 1940 1660 110 1887 1713 45 26 M24 48 5 100 10 90 0.5 16 2012.8 123 1574.4 99
010.60.2000 012.60.2000 014.60.2000 2178 1825 144 2110 1891 48 33 M30 60 8 132 12 120 0.5 18 2264.4 123 1735.2 97
010.60.2240 012.60.2240 014.60.2240 2418 2065 144 2350 2131 48 33 M30 60 8 132 12 120 0.5 18 2498.4 136 1987.2 111
010.60.2500 012.60.2500 014.60.2500 2678 2325 144 2610 2391 56 33 M30 60 8 132 12 120 0.5 20 2776 136 2228 112
010.60.2800 012.60.2800 014.60.2800 2978 2625 144 2910 2691 56 33 M30 60 8 132 12 120 0.5 20 3076 151 2528 127
010.60.2800 012.60.2800 014.60.2800 2978 2625 144 2910 2691 56 33 M30 60 8 132 12 120 0.5 20 3076 151 2528 127
010.75.3150 012.75.3150 014.75.3150 3376 2922 174 3686 3014 56 45 M42 84 8 162 12 120 0.5 22 3471.6 155 2824.8 129
010.75.3150 012.75.3150 014.75.3150 3376 2922 174 3686 3014 56 45 M42 84 8 162 12 120 0.5 22 3471.6 155 2824.8 129
