Model: Single Row Deep Groove Ball Bearings Close Type
Brand: MBY
Quantity:

Single Row Deep Groove Ball Bearings Close Type

Product Description

MBY precision deep groove ball bearings are designed for high precision, low noise, small vibration, high reliability and long life. They are mainly used in various types of electric motors. They are also known as EMQ (Electric Motor Quality) bearings.EMQ bearings are widely used in household appliances, toys, electric power tools, car motors and other fields. With optimal design, high reliability heat treatment, precision manufacturing processes and high-grade grease, these products perform better on reliability, vibration and noise levels than standard products making them more suitable for electric motor applications. These products can also be applied to most gearbox applications as well.

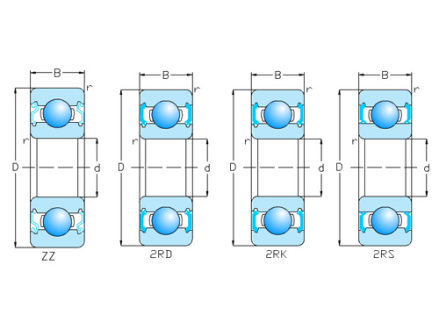

MBY precision deep groove ball bearings include a variety of shields and seals to meet the many different requirements customers demand. For detailed specification, please feel free to contact MBY.MBY precision deep groove ball bearings are good quality products with excellent performance. Because of their high precision, high rotating speed, high reliability, low friction and low noise, they are widely used in areas of machine tools, measuring instruments, office machinery, household appliances, various types of electric motors, industrial automation control, etc.

At the same time, MBY can design and manufacture precision deep groove ball bearings according to your requirements with special functions such as mute, special sealing, electric insulation, ultra-high speed, high/low temperature resistance and etc. And MBY will sincerely provide superior application service and professional technical advice to customers.


Note:Swipe left or right to view the complete table!

Bearing Designation Boundary Dimensions Basic Load Rating Limit Speed Shoulder Dimensions Mass
(mm) (kN) (mm) (open)
Sheild Sealed d D B Cr Cor Grease Oil da Da ra (kg)
(min.) (min. ) (max. ) (max. ) (max .) Approx
6000 ZZ 6000 2RS 10 26 8 0.3 4.55 1.95 19000 36000 12 13 24 0.3 0.019
6001 ZZ 6001 2RS 12 28 8 0.3 5.1 2.4 17000 32000 14 15 26 0.3 0.022
6002 ZZ 6002 2RS 15 32 9 0.3 5.6 2.85 14000 27000 17 18.5 30 0.3 0.03
6003 ZZ 6003 2RS 17 35 10 0.3 6 3.25 12000 25000 19 21 33 0.3 0.039
6004 ZZ 6004 2RS 20 42 12 0.6 9.4 5.05 10000 21000 24 25 38 0.6 0.069
6005 ZZ 6005 2RS 25 47 12 0.6 10.1 5.85 9000 18000 29 29.5 43 0.6 0.08
6006 ZZ 6006 2RS 30 55 13 1 13.2 8.25 7500 15000 35 36 50 1 0.116
6007 ZZ 6007 2RS 35 62 14 1 15.9 10.3 6500 13000 40 42 58 1 0.155
6008 ZZ 6008 2RS 40 68 15 1 16.7 11.5 5800 12000 45 46.5 63 1 0.192
6009 ZZ 6009 2RS 45 75 16 1 21 15.1 5300 11000 50 51.5 70 1 0.245
6010 ZZ 6010 2RS 50 80 16 1 21.8 16.6 4800 9900 55 57 75 1 0.261
6011 ZZ 6011 2RS 55 90 18 1.1 28.3 21.2 4300 8900 61.5 62 83.5 1 0.385
6012 ZZ 6012 2RS 60 95 18 1.1 29.4 23.2 4000 8400 66.5 68.5 88.5 1 0.415
6013 ZZ 6013 2RS 65 100 18 1.1 30.5 25.2 3700 7800 71.5 74.5 93.5 1 0.435
6014 ZZ 6014 2RS 70 110 20 1.1 38.1 30.9 3500 7200 76.5 79.5 103.5 1 0.602
6015 ZZ 6015 2RS 75 115 20 1.1 39.6 33.5 3300 6800 81.5 84.5 108.5 1 0.638
6016 ZZ 6016 2RS 80 125 22 1.1 47.6 39.8 3100 6300 86.5 90 118.5 1 0.85
6017 ZZ 6017 2RS 85 130 22 1.1 49.5 43.1 2900 5900 91.5 96.5 123.5 1 0.89
6018 ZZ 6018 2RS 90 140 24 1.5 58.2 49.7 2700 5600 98 100.5 132 1.5 1.16
6019 ZZ 6019 2RS 95 145 24 1.5 60.4 53.9 2500 5200 103 107.5 137 1.5 1.21
6020 ZZ 6020 2RS 100 150 24 1.5 60.2 54.2 2500 5100 108 112 142 1.5 1.25
6021 ZZ 6021 2RS 105 160 26 2 72.3 65.8 2300 4700 114 119 151 2 1.59
60/22 ZZ 60/22 2RS 22 44 12 0.6 9.4 5.15 9900 20000 26 26.5 40 0.6 0.073
6022 ZZ 6022 2RS 110 170 28 2 82 73 2200 4500 119 123 161 2 1.96
6024 ZZ 6024 2RS 120 180 28 2 85 79.3 2100 4200 129 136 171 2 2.07
6026 ZZ 6026 2RS 130 200 33 2 106 101 1900 3800 139 146.5 191 2 3.16
60/28 ZZ 60/28 2RS 28 52 12 0.6 12.4 7.4 8100 16000 32 33 48 0.6 0.097
6028 ZZ 6028 2RS 140 210 33 2 110 109 1800 3600 149 158.5 201 2 3.55
60/32 ZZ 60/32 2RS 32 58 13 1 15 9.15 7200 14000 37 38 53 1 0.127
6200 ZZ 6200 2RS 10 30 9 0.6 5.1 2.4 16000 29000 14 15 26 0.6 0.032
6201 ZZ 6201 2RS 12 32 10 0.6 6.8 3.05 15000 27000 16 16.5 28 0.6 0.037
6202 ZZ 6202 2RS 15 35 11 0.6 7.65 3.75 13000 24000 19 19.5 31 0.6 0.045
6203 ZZ 6203 2RS 17 40 12 0.6 9.55 4.8 12000 21000 21 22 36 0.6 0.065
6204 ZZ 6204 2RS 20 47 14 1 12.8 6.65 9700 17000 25 26.5 42 1 0.106
6205 ZZ 6205 2RS 25 52 15 1 14 7.85 8400 15000 30 31.5 47 1 0.128
6206 ZZ 6206 2RS 30 62 16 1 19.5 11.3 7000 13000 35 37.5 57 1 0.199
6207 ZZ 6207 2RS 35 72 17 1.1 25.7 15.4 6000 11000 41.5 43.5 65.5 1 0.288
6208 ZZ 6208 2RS 40 80 18 1.1 29.1 17.8 5400 10000 46.5 49 73.5 1 0.366
6209 ZZ 6209 2RS 45 85 19 1.1 32.7 20.3 5100 9200 51.5 53.5 78.5 1 0.407
6210 ZZ 6210 2RS 50 90 20 1.1 35.1 23.3 4600 8500 56.5 59 83.5 1 0.463
6211 ZZ 6211 2RS 55 100 21 1.5 43.4 29.4 4100 7600 63 66 92 1.5 0.607
6212 ZZ 6212 2RS 60 110 22 1.5 52.4 36.2 3700 6900 68 72.5 102 1.5 0.783
6213 ZZ 6213 2RS 65 120 23 1.5 57.2 40.1 3500 6400 73 79 112 1.5 0.99
6214 ZZ 6214 2RS 70 125 24 1.5 62.2 44.1 3300 6100 78 84 117 1.5 1.07
6215 ZZ 6215 2RS 75 130 25 1.5 67.4 48.3 3100 5800 83 88.5 122 1.5 1.18
6216 ZZ 6216 2RS 80 140 26 2 72.7 53 2900 5400 89 93 131 2 1.4
6217 ZZ 6217 2RS 85 150 28 2 84 61.9 2700 5000 94 102 141 2 1.79
6218 ZZ 6218 2RS 90 160 30 2 96.1 71.5 2600 4700 99 108.5 151 2 2.15
6219 ZZ 6219 2RS 95 170 32 2.1 109 81.9 2400 4400 106 113 159 2 2.62
6220 ZZ 6220 2RS 100 180 34 2.1 122 93.1 2300 4200 111 122 169 2 3.14
6221 ZZ 6221 2RS 105 190 36 2.1 133 105 2200 3900 116 127 179 2 3.7
62/22 ZZ 62/22 2RS 22 50 14 1 12.8 6.65 9700 17000 27 27 45 1 0.118
6222 ZZ 6222 2RS 110 200 38 2.1 144 117 2000 3700 121 136.5 189 2 4.36
6224 ZZ 6224 2RS 120 215 40 2.1 155 131 1900 3400 131 144 204 2 5.15
6226 ZZ 6226 2RS 130 230 40 3 167 146 1800 3200 143 157 217 2.5 5.82
62/28 ZZ 62/28 2RS 28 58 16 1 17.9 9.75 7600 14000 33 35 53 1 0.173
6228 ZZ 6228 2RS 140 250 42 3 166 150 1600 2900 153 169 237 2.5 7.45
62/32 ZZ 62/32 2RS 32 65 17 1 23.5 13.1 6900 12000 37 38.5 60 1 0.228
6300 ZZ 6300 2RS 10 35 11 0.6 8.1 3.45 16000 27000 14 16 31 0.6 0.053
6301 ZZ 6301 2RS 12 37 12 1 9.7 4.2 15000 25000 17 17.5 32 1 0.06
6302 ZZ 6302 2RS 15 42 13 1 11.4 5.45 12000 20000 20 21.5 37 1 0.082
6303 ZZ 6303 2RS 17 47 14 1 13.6 6.65 10000 18000 22 24.3 42 1 0.115
6304 ZZ 6304 2RS 20 52 15 1.1 15.9 7.85 9500 17000 26.5 27 45.5 1 0.144
6305 ZZ 6305 2RS 25 62 17 1.1 20.6 11.3 7500 13000 31.5 34 55.5 1 0.232
6306 ZZ 6306 2RS 30 72 19 1.1 26.7 15 6400 12000 36.5 40 65.5 1 0.346
6307 ZZ 6307 2RS 35 80 21 1.5 33.4 19.3 5700 10000 43 46 72 1.5 0.457
6308 ZZ 6308 2RS 40 90 23 1.5 40.7 24 5100 9200 48 51.5 82 1.5 0.633
6309 ZZ 6309 2RS 45 100 25 1.5 48.9 29.5 4500 8100 53 59.5 92 1.5 0.833
6310 ZZ 6310 2RS 50 110 27 2 62 38.3 4100 7300 59 66.5 101 2 1.07
6311 ZZ 6311 2RS 55 120 29 2 71.6 45 3700 6700 64 74.5 111 2 1.37
6312 ZZ 6312 2RS 60 130 31 2.1 81.9 52.2 3500 6200 71 80 119 2 1.7
6313 ZZ 6313 2RS 65 140 33 2.1 92.7 59.9 3200 5800 76 86 129 2 2.08
6314 ZZ 6314 2RS 70 150 35 2.1 104 68.2 3000 5400 81 92 139 2 2.52
6315 ZZ 6315 2RS 75 160 37 2.1 113 77.2 2800 5000 86 97.5 149 2 3.02
6316 ZZ 6316 2RS 80 170 39 2.1 123 86.7 2700 4700 91 105 159 2 3.59
6317 ZZ 6317 2RS 85 180 41 3 133 96.8 2500 4400 98 111 167 2.5 4.23
6318 ZZ 6318 2RS 90 190 43 3 143 107 2400 4200 103 117 177 2.5 4.91
6319 ZZ 6319 2RS 95 200 45 3 153 119 2200 4000 108 122 187 2.5 5.67
6320 ZZ 6320 2RS 100 215 47 3 173 141 2100 3600 113 131 202 2.5 7
6321 ZZ 6321 2RS 105 225 49 3 184 153 2000 3500 118 136 212 2.5 8.05
63/22 ZZ 63/22 2RS 22 56 16 1.1 18.5 9.4 8600 15000 28.5 29 49.5 1 0.201
6322 ZZ 6322 2RS 110 240 50 3 205 180 1900 3200 123 146.5 227 2.5 9.54
6324 ZZ 6324 2RS 120 260 55 3 207 185 0 3000 133 158 247 2.5 12.5
6326 ZZ 6326 2RS 130 280 58 4 229 214 0 2700 146 171 264 3 15.1
63/28 ZZ 63/28 2RS 28 68 18 1.1 23.5 13.1 6900 12000 34.5 37.5 61.5 1 0.328
6328 ZZ 6328 2RS 140 300 62 4 253 246 0 2500 156 184 284 3 19.4
63/32 ZZ 63/32 2RS 32 75 20 1.1 30.1 16.2 6400 11000 38.5 41 68.5 1 0.437
6800 ZZ 6800 2RS 10 19 5 0.3 1.7 0.84 22000 43000 12 12 17 0.3 0.005
6801 ZZ 6801 2RS 12 21 5 0.3 1.9 1.05 20000 39000 14 14 19 0.3 0.006
6802 ZZ 6802 2RS 15 24 5 0.3 2.1 1.25 16000 33000 17 17 22 0.3 0.007
6803 ZZ 6803 2RS 17 26 5 0.3 2.6 1.55 0 30000 19 19 24 0.3 0.008
6804 ZZ 6804 2RS 20 32 7 0.3 4 2.45 0 25000 22 22.5 30 0.3 0.018
6805 ZZ 6805 2RS 25 37 7 0.3 4.3 2.95 10000 21000 27 27.5 35 0.3 0.022
6806 ZZ 6806 2RS 30 42 7 0.3 4.55 3.4 0 18000 32 32.5 40 0.3 0.026
6807 ZZ 6807 2RS 35 47 7 0.3 4.75 3.85 0 16000 37 37.5 45 0.3 0.03
6808 ZZ 6808 2RS 40 52 7 0.3 4.95 4.2 6700 14000 42 42 50 0.3 0.033
6809 ZZ 6809 2RS 45 58 7 0.3 6.2 5.4 0 13000 47 47 56 0.3 0.04
6810 ZZ 6810 2RS 50 65 7 0.3 6.6 6.1 0 11000 52 53 63 0.3 0.052
6811 ZZ 6811 2RS 55 72 9 0.3 8.8 8.1 0 10000 57 58.5 70 0.3 0.083
6812 ZZ 6812 2RS 60 78 10 0.3 11.5 10.6 0 9400 62 63 76 0.3 0.104
6813 ZZ 6813 2RS 65 85 10 0.6 11.9 11.5 0 8600 69 69 81 0.6 0.126
6814 ZZ 6814 2RS 70 90 10 0.6 12.1 11.9 0 8100 74 74 86 0.6 0.134
6815 ZZ 6815 2RS 75 95 10 0.6 12.5 12.9 0 7600 79 79 91 0.6 0.142
6816 ZZ 6816 2RS 80 100 10 0.6 12.7 13.3 0 7200 84 84 96 0.6 0.15
6817 ZZ 6817 2RS 85 110 13 1 18.7 19 0 6600 90 90.5 105 1 0.266
6818 ZZ 6818 2RS 90 115 13 1 19 19.7 0 6300 95 95.5 110 1 0.279
6820 ZZ 6820 2RS 100 125 13 1 19.6 21.2 0 5700 105 105.5 120 1 0.309
6822 ZZ 6822 2RS 110 140 16 1 28.1 30.7 0 5100 115 116.5 135 1 0.606
6824 ZZ 6824 2RS 120 150 16 1 29 33 0 4700 125 128.5 145 1 0.655
6826 ZZ 6826 2RS 130 165 18 1.1 36.9 41.2 0 4300 136.5 139.5 158.5 1 0.939
6828 ZZ 6828 2RS 140 175 18 1.1 38.2 44.4 0 4000 146.5 148 168.5 1 1
6900 ZZ 6900 2RS 10 22 6 0.3 2.7 1.25 21000 41000 12 12.5 20 0.3 0.01
6901 ZZ 6901 2RS 12 24 6 0.3 2.9 1.45 18000 36000 14 14 22 0.3 0.011
6902 ZZ 6902 2RS 15 28 7 0.3 4.3 2.25 15000 30000 17 18 26 0.3 0.017
6903 ZZ 6903 2RS 17 30 7 0.3 4.6 2.55 13000 28000 19 19.5 28 0.3 0.018
6904 ZZ 6904 2RS 20 37 9 0.3 6.35 3.7 11000 23000 22 23.5 35 0.3 0.036
6905 ZZ 6905 2RS 25 42 9 0.3 7 4.55 9300 19000 27 29 40 0.3 0.041
6906 ZZ 6906 2RS 30 47 9 0.3 7.25 5 8200 17000 32 33 45 0.3 0.045
6907 ZZ 6907 2RS 35 55 10 0.6 10.9 7.75 6800 14000 39 40 51 0.6 0.073
6908 ZZ 6908 2RS 40 62 12 0.6 13.7 9.95 6100 13000 44 44.5 58 0.6 0.112
6909 ZZ 6909 2RS 45 68 12 0.6 14.1 10.9 5500 11000 49 50 64 0.6 0.132
6910 ZZ 6910 2RS 50 72 12 0.6 14.5 11.7 0 11000 54 55.5 68 0.6 0.133
6911 ZZ 6911 2RS 55 80 13 1 16.6 14.1 4500 9600 60 60.5 75 1 0.185
6912 ZZ 6912 2RS 60 85 13 1 20.2 17.3 0 8900 65 66 80 1 0.192
6913 ZZ 6913 2RS 65 90 13 1 17.4 16.1 3900 8400 70 71 85 1 0.211
6914 ZZ 6914 2RS 70 100 16 1 23.7 21.2 3600 7600 75 76.5 95 1 0.342
6915 ZZ 6915 2RS 75 105 16 1 24.4 22.6 0 7200 80 82.5 100 1 0.363
6916 ZZ 6916 2RS 80 110 16 1 25 24 3200 6800 85 86.5 105 1 0.382
6917 ZZ 6917 2RS 85 120 18 1.1 31.9 29.6 3000 6300 91.5 92.5 113.5 1 0.535
6918 ZZ 6918 2RS 90 125 18 1.1 32.8 31.6 2800 6000 96.5 97.5 118.5 1 0.565
6919 ZZ 6919 2RS 95 130 18 1.1 33.7 33.5 2700 5700 101.5 102 123.5 1 0.705
6920-1 ZZ 6920-1 2RS 100 140 20 1.1 45 41.9 0 5300 106.5 110.5 133.5 1 0.96
6921-1 ZZ 6921-1 2RS 105 145 20 1.1 46.5 44.8 2400 5100 111.5 115 138.5 1 1
6922 ZZ 6922 2RS 110 150 20 1.1 47.9 47.8 0 4900 116.5 119.5 143.5 1 1.04
6924 ZZ 6924 2RS 120 165 22 1.1 57.2 56.9 0 4400 126.5 131.5 158.5 1 1.41
6926-1 ZZ 6926-1 2RS 130 180 24 1.5 69.6 70 0 4100 138 144 172 1.5 1.86
6928-1 ZZ 6928-1 2RS 140 190 24 1.5 71.3 74.8 0 3800 148 153 182 1.5 1.98
