Model: Single Row Deep Groove Ball Bearings With Snap Ring
Brand: MBY
Quantity:

Single Row Deep Groove Ball Bearings With Snap Ring

Product Description
MBY precision deep groove ball bearings are designed for high precision, low noise, small vibration, high reliability and long life. They are mainly used in various types of electric motors. They are also

EMQ bearings are widely used in household appliances, toys, electric power tools, car motors and other fields. With optimal design, high reliability heat treatment, precision manufacturing processes and high-grade grease, these products perform better on reliability, vibration and noise levels than standard products making them more suitable for electric motor applications. These products can also be applied to most gearbox applications as well.

MBY precision deep groove ball bearings include a variety of shields and seals to meet the many different requirements customers demand. For detailed specification, please feel free to contact MBY.

MBY precision deep groove ball bearings are good quality products with excellent performance. Because of their high precision, high rotating speed, high reliability, low friction and low noise, they are widely used in areas of machine tools, measuring instruments, office machinery, household appliances, various types of electric motors, industrial automation control, etc.

At the same time, MBY can design and manufacture precision deep groove ball bearings according to your requirements with special functions such as mute, special sealing, electric insulation, ultra-high speed, high/low temperature resistance and etc. And MBY will sincerely provide superior application service and professional technical advice to customers.

Note:Swipe left or right to view the complete table!

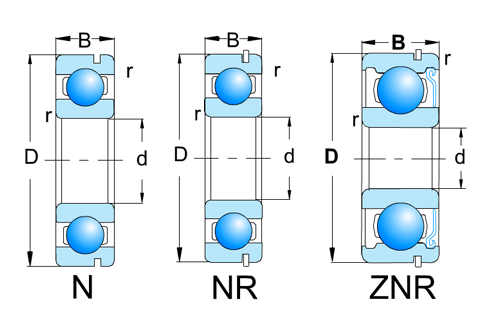

Bearing Designation Boundary Dimensions Basic Load Rating Limiting Speed Bearing Designation Mass
(mm) (kN) (rpm) (kg)
d D B r r1 Cr Cor Grease Oil With snap With snap Approx
(min.) (min.) ring groove ring
6004N 20 42 12 0.6 0.5 9.4 5.05 17000 21000 6004N 6004NR 0.069
6005N 25 47 12 0.6 0.5 10.1 5.85 15000 18000 6005N 6005NR 0.08
6006N 30 0 55 13 1 0.5 13.2 8.25 13000 15000 6006N 6006NR 0.116
6007N 350 62 14 1 0.5 15.9 10.3 11000 13000 6007N 6007NR 0.155
6008N 40 68 15 1 0.5 16.7 11.5 10000 12000 6008N 6008NR 0.192
6009N 450 75 16 1 0.5 21 15.1 9200 11000 6009N 6009NR 0.245
6010N 500 80 16 1 0.5 21.8 16.6 8400 9900 6010N 6010NR 0.261
6011N 55 90 18 1.1 0.5 28.3 21.2 7600 8900 6011N 6011NR 0.385
6012N 600 95 18 1.1 0.5 29.4 23.2 7100 8400 6012N 6012NR 0.415
6013N 65 100 18 1.1 0.5 30.5 25.2 6600 7800 6013N 6013NR 0.435
6014N 700 110 20 1.1 0.5 38.1 30.9 6100 7200 6014N 6014NR 0.602
6015N 750 115 20 1.1 0.5 39.6 33.5 5700 6800 6015N 6015NR 0.638
6016N 800 125 22 1.1 0.5 47.6 39.8 5300 6300 6016N 6016NR 0.85
6017N 850 130 22 1.1 0.5 49.5 43.1 5000 5900 6017N 6017NR 0.89
6018N 90 140 24 1.5 0.5 58.2 49.7 4700 5600 6018N 6018NR 1.16
6019N 95 145 24 1.5 0.5 60.4 53.9 4400 5200 6019N 6019NR 1.21
6020N 1000 150 24 1.5 0.5 60.2 54.2 4300 5100 6020N 6020NR 1.25
6021N 1050 160 26 2 0.5 72.3 65.8 4000 4700 6021N 6021NR 1.59
60/22N 220 44 12 0.6 0.5 9.4 5.15 17000 20000 60/22N 60/22NR 0.073
6022N 1100 170 28 2 0.5 82 73 3800 4500 6022N 6022NR 1.96
6024N 120 180 28 2 0.5 85 79.3 3600 4200 6024N 6024NR 2.07
6026N 130 200 33 2 0.5 106 101 3200 3800 6026N 6026NR 3.16
60/28N 28 0 52 12 0.6 0.5 12.4 7.4 14000 16000 60/28N 60/28NR 0.097
60/32N 32 0 58 13 1 0.5 15 9.15 12000 14000 60/32N 60/32NR 0.127
6200N 100 30 9 0.6 0.3 5.1 2.4 24000 29000 6200N 6200NR 0.032
6201N 120 32 10 0.6 0.3 6.8 3.05 22000 27000 6201N 6201NR 0.037
6202N 150 35 11 0.6 0.5 7.65 3.75 20000 24000 6202N 6202NR 0.045
6203N 17 40 12 0.6 0.5 9.55 4.8 17000 21000 6203N 6203NR 0.065
6204N 20 47 14 1 0.5 12.8 6.65 15000 17000 6204N 6204NR 0.106
6205N 25 52 15 1 0.5 14 7.85 13000 15000 6205N 6205NR 0.128
6206N 30 0 62 16 1 0.5 19.5 11.3 11000 13000 6206N 6206NR 0.199
6207N 350 72 17 1.1 0.5 25.7 15.4 9200 11000 6207N 6207NR 0.288
6208N 40 80 18 1.1 0.5 29.1 17.8 8300 10000 6208N 6208NR 0.366
6209N 450 85 19 1.1 0.5 32.7 20.3 7700 9200 6209N 6209NR 0.407
6210N 500 90 20 1.1 0.5 35.1 23.3 7100 8500 6210N 6210NR 0.463
6211N 55 100 21 1.5 0.5 43.4 29.4 6300 7600 6211N 6211NR 0.607
6212N 600 110 22 1.5 0.5 52.4 36.2 5700 6900 6212N 6212NR 0.783
6213N 65 120 23 1.5 0.5 57.2 40.1 5400 6400 6213N 6213NR 0.99
6214N 700 125 24 1.5 0.5 62.2 44.1 5100 6100 6214N 6214NR 1.07
6215N 750 130 25 1.5 0.5 67.4 48.3 4800 5800 6215N 6215NR 1.18
6216N 800 140 26 2 0.5 72.7 53 4500 5400 6216N 6216NR 1.4
6217N 850 150 28 2 0.5 84 61.9 4200 5000 6217N 6217NR 1.79
6218N 90 160 30 2 0.5 96.1 71.5 3900 4700 6218N 6218NR 2.15
6219N 95 170 32 2.1 0.5 109 81.9 3700 4400 6219N 6219NR 2.62
6220N 1000 180 34 2.1 0.5 122 93.1 3500 4200 6220N 6220NR 3.14
6221N 1050 190 36 2.1 0.5 133 105 3300 3900 6221N 6221NR 3.7
62/22N 220 50 14 1 0.5 12.8 6.65 15000 17000 62/22N 62/22NR 0.118
6222N 1100 200 38 2.1 0.5 144 117 3100 3700 6222N 6222NR 4.36
62/28N 28 0 58 16 1 0.5 17.9 9.75 12000 14000 62/28N 62/28NR 0.173
62/32N 32 0 65 17 1 0.5 23.5 13.1 10000 12000 62/32N 62/32NR 0.228
6300N 100 35 11 0.6 0.5 8.1 3.45 22000 27000 6300N 6300NR 0.053
6301N 120 37 12 1 0.5 9.7 4.2 20000 25000 6301N 6301NR 0.06
6302N 150 42 13 1 0.5 11.4 5.45 17000 20000 6302N 6302NR 0.082
6303N 17 47 14 1 0.5 13.6 6.65 15000 18000 6303N 6303NR 0.115
6304N 20 52 15 1.1 0.5 15.9 7.85 14000 17000 6304N 6304NR 0.144
6305N 25 62 17 1.1 0.5 20.6 11.3 11000 13000 6305N 6305NR 0.232
6306N 30 0 72 19 1.1 0.5 26.7 15 9600 12000 6306N 6306NR 0.346
6307N 350 80 21 1.5 0.5 33.4 19.3 8500 10000 6307N 6307NR 0.457
6308N 40 90 23 1.5 0.5 40.7 24 7700 9200 6308N 6308NR 0.633
6309N 450 100 25 1.5 0.5 48.9 29.5 6800 8100 6309N 6309NR 0.833
6310N 500 110 27 2 0.5 62 38.3 6100 7300 6310N 6310NR 1.07
6311N 55 120 29 2 0.5 71.6 45 5600 6700 6311N 6311NR 1.37
6312N 600 130 31 2.1 0.5 81.9 52.2 5200 6200 6312N 6312NR 1.7
6313N 65 140 33 2.1 0.5 92.7 59.9 4800 5800 6313N 6313NR 2.08
6314N 700 150 35 2.1 0.5 104 68.2 4500 5400 6314N 6314NR 2.52
6315N 750 160 37 2.1 0.5 113 77.2 4200 5000 6315N 6315NR 3.02
6316N 800 170 39 2.1 0.5 123 86.7 3900 4700 6316N 6316NR 3.59
6317N 850 180 41 3 0.5 133 96.8 3700 4400 6317N 6317NR 4.23
6318N 90 190 43 3 0.5 143 107 3500 4200 6318N 6318NR 4.91
6319N 95 200 45 3 0.5 153 119 3300 4000 6319N 6319NR 5.67
63/22N 220 56 16 1.1 0.5 18.5 9.4 13000 15000 63/22N 63/22NR 0.201
63/28N 28 0 68 18 1.1 0.5 23.5 13.1 10000 12000 63/28N 63/28NR 0.328
63/32N 32 0 75 20 1.1 0.5 30.1 16.2 9300 11000 63/32N 63/32NR 0.437
