Model: Thrust Cylindrical roller bearings
Brand: MBY
Quantity:

Thrust Cylindrical roller bearings

Product Description
Cylindrical roller thrust bearing and tapered roller thrust bearings are separable and can carry heavy axial loads.
Furthermore, they are stiff and insensitive to shock loads, and they require little space.

They are single directions bearings and can only accommodate axial load in one direction.
Their main use is in applications where the load carrying capacity of thrust ball bearing is inadequate.

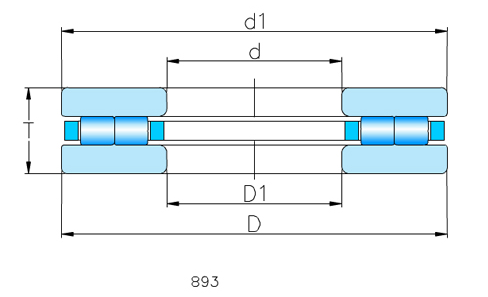

871    872


Note:Swipe left or right to view the complete table!
Bearing Number Boundary dimensions(mm) Basic load ratings(kN) Limiting speeds(rpm) Mass(Kg)
MBY d D d1s D1s T Dw B rs Cr Cor Grease oil (Approx.)
max min min
89306 30 60 60 32 18 5.5 6.25 1 54 166 1300 5000 0.25
89307 35 68 68 37 20 6 7 1 66 214 1200 4600 0.36
89308 40 78 78 42 22 7 7.5 1 85 277 1000 4000 0.52
89309 45 85 85 47 24 7.5 8.25 1 102 345 900 3600 0.67
89310 50 95 95 52 27 8 9.5 1.1 125 445 800 3200 0.94
89311 55 105 105 57 30 9 10.5 1.1 158 570 730 2900 1.27
89312 60 110 110 62 30 9 10.5 1.1 162 600 680 2700 1.35
89313 65 115 115 67 30 9 10.5 1.1 166 635 650 2600 1.43
89314 70 125 125 72 34 10 12 1.1 205 790 600 2400 1.93
89315 75 135 135 77 36 11 12.5 1.5 239 920 550 2200 2.41
89316 80 140 140 82 36 11 12.5 1.5 246 970 530 2100 2.53
89317 85 150 150 88 39 12 13.5 1.5 281 1100 500 2000 3.14
89318 90 155 155 93 39 12 13.5 1.5 289 1160 480 1900 3.28
89320 100 170 170 103 42 13 14.5 1.5 335 1370 430 1700 4.19
89322 110 190 190 113 48 15 16.5 2 430 177 400 1600 6.03
81102 15 28 28 16 9 3.5 2.75 0.3 12.9 28.6 2800 11000 0.026
81103 17 30 30 18 9 3.5 2.75 0.3 13.4 31 2500 10000 0.03
81104 20 35 35 21 10 4.5 2.75 0.3 20.2 46.5 2100 8500 0.004
81105 25 42 42 26 11 5 3 0.6 27.3 68 1800 7000 0.006
81106 30 47 47 32 11 5 3 0.6 27.8 72.5 1500 6000 0.007
81107 35 52 52 37 12 5 3.5 0.6 31 87 1400 5500 0.009
81108 40 60 60 42 13 6 3.5 0.6 43 121 1200 4800 0.135
81109 45 65 65 47 14 6 4 0.5 45.5 135 1100 4400 0.15
81110 50 70 70 52 14 6 4 0.5 48 150 1000 4000 0.165
81111 55 78 78 57 16 6 5 0.6 62.5 215 900 3600 0.25
81112 60 85 85 62 17 7.5 4.75 1 69 215 830 3300 0.285
81113 65 90 90 67 18 7.5 5.25 1 73 236 780 3100 0.34
81114 70 95 95 72 18 7.5 5.25 1 76.5 257 730 2900 0.365
81115 75 100 100 77 19 7.5 5.75 1 78 268 680 2700 0.425
81116 80 105 105 82 19 7.5 5.75 1 79.5 279 650 2600 0.445
81117 85 110 110 87 19 7.5 5.75 1 83 300 630 2500 0.475
81118 90 120 120 92 22 9 6.5 1 112 395 580 2300 0.67
81120 100 135 135 102 25 11 7 1 158 555 500 2000 1
81122 110 145 145 112 25 11 7 1 165 605 480 1900 1.1
81124 120 155 155 122 25 11 7 1 172 655 450 1800 1.17
81126 130 170 170 132 30 12 9 1 197 755 400 1600 1.74
81128 140 180 178 142 31 12 9.5 1 206 815 380 1500 1.95
81130 150 190 188 152 31 12 9.5 1 214 870 350 1400 2.07
81132 160 200 198 162 31 12 9.5 1 221 930 330 1300 2.19
81206 30 52 52 32 16 7.5 4.25 0.6 53.5 129 1500 6000 0.14
81207 35 62 62 37 18 7.5 5.25 1 54.5 139 1200 4900 0.235
81208 40 68 68 42 19 9 5 1 74.5 190 1100 4400 0.265
81209 45 73 73 47 20 9 5.5 1 82 222 1000 4100 0.31
81210 50 78 78 52 22 9 6.5 1 85 238 950 3800 0.385
81211 55 90 90 57 25 11 7 1 121 340 830 3300 0.61
81212 60 95 95 62 26 11 7.5 1 125 365 780 3100 0.66
81213 65 100 100 67 27 11 8 1 130 385 730 2900 0.775
81214 70 105 105 72 27 11 8 1 134 410 680 2700 0.815
81215 75 110 110 77 27 11 8 1 138 435 650 2600 0.86
81216 80 115 115 82 28 11 8.5 1 142 460 630 2500 0.95
81217 85 125 125 88 31 12 9.5 1 169 550 580 2300 1.28
81218 90 135 135 93 35 14 10.5 1.1 213 680 530 2100 1.82
81220 100 150 150 103 38 15 11.5 1.1 243 795 480 1900 2.24
81222 110 160 160 113 38 15 11.5 1.1 259 885 450 1800 2.45
81224 120 170 170 123 39 15 12 1.1 264 930 430 1700 2.69
81226 130 190 187 133 45 19 13 1.5 360 1210 380 1500 4.2
81228 140 200 197 143 46 19 13.5 1.5 370 1280 350 1400 4.57
