Model: UCF2 Series
Brand: MBY
Quantity:

UCF2 Series

Product Description
MBY® Pillow blocks, the most commonly used type of mounted units, are housings which have a bearing fitted into them.They are designed to provide shaft support where the mounting surface is parallel to the shaft axis.Typically manufactured from cast iron or cast steel, the pillow block bearing housing has provisions to allow the housing to be bolted down snugly.

MBY® Pillow blocks are supplied in a variety of configurations, and are usually mounted in cleaner environments and generally are meant for lesser loads of general industry.MBY® Pillow blocks are widely used in agriculture machine, conveyor system, construction machines, etc.
The insert bearings are the deep groove ball bearings with wide inner rings, it insert in housing  work as an unit bearings.

The housing are mainly casting or pressed steel.  The bearing unit are compact in design with perfect sealing devices .TRhey can align with easy during operation and can be conveniently mounted or dismounted.

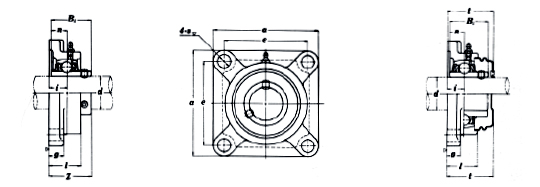

76
Note:Swipe left or right to view the complete table!
Unit No. Dimensions(mm) Bolt Used(mm) Bearing No. Housing No. Mass(kg)
d L J A2 A1 A E N S
UCF202 15 76 54 15 11 25.5 30.9 11.5 11.5 M10 UC202 F202 0.59
UCF203 17 76 54 15 11 25.5 30.9 11.5 11.5 M10 UC203 F203 0.57
UCF204 20 86 64 15 11 25.5 33.3 11.5 12.7 M10 UC204 F204 0.61
UCF205 25 95 70 16 13 27 35.7 11.5 14.3 M10 UC205 F205 0.8
UCF206 30 108 83 18 13 31 40.2 11.5 15.9 M10 UC206 F206 1.07
UCF207 35 117 92 19 15 34 44.4 14 17.5 M12 UC207 F207 1.4
UCF208 40 130 102 21 15 36 51.2 16 19 M12 UC208 F208 1.8
UCF209 45 137 105 22 16 38 52.2 16 19 M14 UC209 F209 2.14
UCF210 50 143 111 22 16 40 54.6 16 19 M16 UC210 F210 2.57
UCF211 55 162 130 25 18 43 58.4 19 22.2 M16 UC211 F211 3.5
UCF212 60 175 143 29 18 48 68.7 19 25.4 M16 UC212 F212 4.2
UCF213 65 187 149 30 22 50 69.7 19 25.4 M16 UC213 F213 5.3
UCF214 70 193 152 31 22 54 75.4 19 30.2 M16 UC214 F214 5.9
UCF215 75 200 159 34 22 56 78.5 19 33.3 M16 UC215 F215 6.3
UCF216 80 208 165 34 22 57 83.3 23 33.3 M20 UC216 F216 7.3
UCF217 85 220 175 36 24 63 87.6 23 34.1 M20 UC217 F217 8.9
UCF218 90 235 187 40 25 68 96.3 23 39.7 M20 UC218 F218 11.6
