Model: UCPA2 Series
Brand: MBY
Quantity:

UCPA2 Series

Product Description
MBY® Pillow blocks, the most commonly used type of mounted units, are housings which have a bearing fitted into them.They are designed to provide shaft support where the mounting surface is parallel to the shaft axis.Typically manufactured from cast iron or cast steel, the pillow block bearing housing has provisions to allow the housing to be bolted down snugly.

MBY® Pillow blocks are supplied in a variety of configurations, and are usually mounted in cleaner environments and generally are meant for lesser loads of general industry.MBY® Pillow blocks are widely used in agriculture machine, conveyor system, construction machines, etc.
The insert bearings are the deep groove ball bearings with wide inner rings, it insert in housing  work as an unit bearings.

The housing are mainly casting or pressed steel.  The bearing unit are compact in design with perfect sealing devices .They can align with easy during operation and can be conveniently mounted or dismounted.

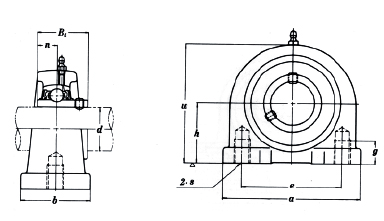

81

Note:Swipe left or right to view the complete table!
Unit No. Dimensions(mm) Tapped Holes(M) Bearing No. Housing No. Mass(kg)
d H L J A H0 S B F
UCPA203 17 30.2 70 48 36 57 11.5 27.4 10 M8 UC203 PA203 0
UCPA204 20 30.2 76 52 40 62 12.7 31 13 M10 UC204 PA204 0.6
UCPA205 25 36.5 84 56 38 72 14.3 34 15 M10 UC205 PA205 0.8
UCPA206 30 42.9 94 66 48 84 15.9 38.1 18 M14 UC206 PA206 1.2
UCPA207 35 47.6 110 80 48 95 17.5 42.9 20 M14 UC207 PA207 1.7
UCPA208 40 49.2 116 84 54 100 19 49.2 20 M14 UC208 PA208 2
UCPA209 45 54.2 120 90 60 108 19 49.2 25 M14 UC209 PA209 2.2
UCPA210 50 57.2 130 94 60 116 19 51.6 25 M16 UC210 PA210 2.8
UCPA211 55 63.5 140 104 66 125 22.2 55.6 25 M16 UC211 PA211 3
UCPA212 60 69.9 150 114 68 138 25.4 65.1 25 M16 UC212 PA212 4.24
UCPA213 65 76.2 160 124 70 150 25.4 65.1 25 M16 UC213 PA213 0
