Model: UCX Series
Brand: MBY
Quantity:

UCX Series

Product Description
MBY® Pillow blocks, the most commonly used type of mounted units, are housings which have a bearing fitted into them.They are designed to provide shaft support where the mounting surface is parallel to the shaft axis.Typically manufactured from cast iron or cast steel, the pillow block bearing housing has provisions to allow the housing to be bolted down snugly.

MBY® Pillow blocks are supplied in a variety of configurations, and are usually mounted in cleaner environments and generally are meant for lesser loads of general industry.MBY® Pillow blocks are widely used in agriculture machine, conveyor system, construction machines, etc.
The insert bearings are the deep groove ball bearings with wide inner rings, it insert in housing  work as an unit bearings.

The housing are mainly casting or pressed steel.  The bearing unit are compact in design with perfect sealing devices .
They can align with easy during operation and can be conveniently mounted or dismounted.

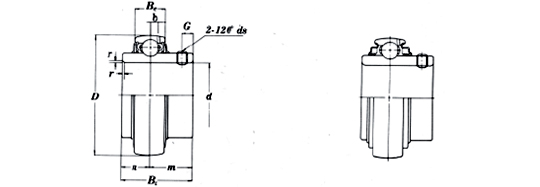

85


Note:Swipe left or right to view the complete table!
Bearing No. Bore Dia Dimensions(in) or(mm) Basic  Basic  Mass
Dynamic  Static  (kg)
Load  Load
Rating  Rating
d (N) (N)
(in) D Bi Be r n m G ds T


UCX05-13 13/16 2.4409 1.5 0.748 0.059 0.626 0.874 0.1969 1/4-28 0.1968 1540 1020 0.39
UCX06-17 1-1/16 2.8346 1.689 0.7874 0.079 0.689 1 0.2361 5/16-24 0.2244 2030 1400 0.59
UCX07-20 1-1/4 3.1496 1.937 0.827 0.079 0.748 1.189 0.315 5/16-24 0.244 2300 1600 0.77
UCX08-24 1-1/2 3.3465 1.937 0.8661 0.079 0.748 1.189 0.315 5/16-24 0.2519 2560 1810 0.92
UCX09-26 1-5/8 3.5433 2.0315 0.9449 0.079 0.748 1.2835 0.3937 3/8-24 0.2559 2750 2020 1.13
UCX10-29 1-13/16 3.937 2.189 0.9843 0.098 0.874 0.315 0.3937 3/8-24 0.2755 3400 2550 1.41
UCX11-32 2 4.3307 2.563 1.063 0.098 1 1.563 0.3937 3/8-24 0.2992 4100 3150 1.9
UCX12-36 2-1/4 4.7244 2.563 1.1024 0.098 1 1.563 0.3937 3/8-24 0.3503 4480 3470 2
UCX13-40 2-1/2 4.9213 2.937 1.1811 0.098 1.189 1.748 0.4724 7/16-20 0.3503 4870 3810 2.32
UCX14-42 2-5/8 5.1181 3.063 1.2598 0.098 1.311 1.752 0.4724 7/16-20 0.3503 5200 4200 2.61
UCX15-45 2-13/16 5.5118 3.282 1.2992 0.118 1.311 1.9409 0.5512 7/16-20 0.3779 5700 4550 3.59
UCX16-50 3-1/8 5.9055 3.374 1.378 0.118 1.3425 2.0315 0.5512 7/16-20 0.3937 6600 5320 4.16
UCX17-52 3-1/4 6.2992 3.7795 1.4567 0.118 1.563 2.2165 0.5905 1/2-20 0.433 7550 6170 5.01
