Model: UK2 Series
Brand: MBY
Quantity:

UK2 Series

Product Description
MBY® Pillow blocks, the most commonly used type of mounted units, are housings which have a bearing fitted into them.They are designed to provide shaft support where the mounting surface is parallel to the shaft axis.Typically manufactured from cast iron or cast steel, the pillow block bearing housing has provisions to allow the housing to be bolted down snugly.

MBY® Pillow blocks are supplied in a variety of configurations, and are usually mounted in cleaner environments and generally are meant for lesser loads of general industry.MBY® Pillow blocks are widely used in agriculture machine, conveyor system, construction machines, etc.
The insert bearings are the deep groove ball bearings with wide inner rings, it insert in housing  work as an unit bearings.

The housing are mainly casting or pressed steel.  The bearing unit are compact in design with perfect sealing devices .They can align with easy during operation and can be conveniently mounted or dismounted.

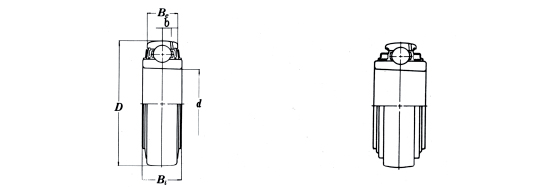

86


Note:Swipe left or right to view the complete table!
Bearing No. Boundary dimensions(mm) Mass  Basic Dynamic  Basic Static  Limiting Speed
(kg) Load Rating  Load Rating  (r/min)
dz D B S C
Cr(N) Cor(N)
UK205 25 2.0472 0.906 0.4527 0.669 0.16 10780 8980 3400
UK206 30 2.4409 1.024 0.5118 0.748 0.24 14970 10040 2800
UK207 35 2.8346 1.063 0.5314 0.787 0.4 19750 13670 2400
UK208 40 3.1496 1.1421 0.5708 0.827 0.53 22710 15940 2200
UK209 45 3.3465 1.181 0.5905 0.866 0.55 24360 17710 1900
UK210 50 3.5433 1.22 0.6102 0.908 0.62 26980 19840 1800
UK211 55 3.937 1.299 0.6496 0.945 0.85 33370 25110 1600
UK212 60 4.3307 1.417 0.7086 1.024 1.13 36740 27970 1500
UK213 65 4.7244 1.96 0.748 1.063 1.46 44010 34180 1400
UK215 75 5.1181 1.614 0.807 1.181 1.53 50850 41280 1200
UK216 80 5.5118 1.732 0.8661 1.26 1.98 55040 45090 1100
UK217 85 5.9055 1.811 0.9055 1.339 2.51 64010 53280 1000
UK218 90 6.2992 1.929 0.9645 1.417 3.07 73830 60760 950
