XRB Cross Roller Bearing

Product Description

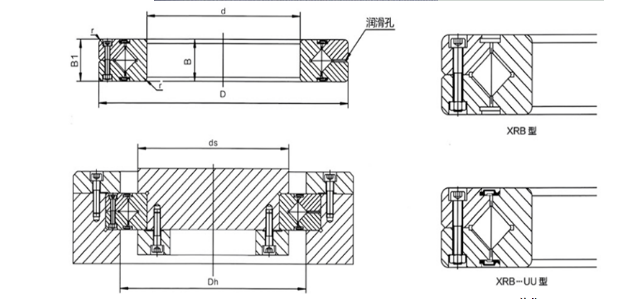

XRB type, this model is the basic type of cross roller bearings. The outer ring is divided into two pieces, the inner ring as a whole structure, it is most suitable for the requirements of the inner ring rotation accuracy of the occasion. XRBC type built on the basis of XRB steel retainer, suitable for working temperature is slightly higher and the required speed of the occasion, generally open structure.
XRB Cross Roller Bearing


Type Dimension(mm) Rated Load Weight Releated type
ID OD B Radial(KN)
d D B C Co Kg THK IKO NSK
XRB 2008 20 36 8 3.23 3.1 0.04 RB2008 - -
XRB 2508 25 41 8 3.63 3.83 0.05 RB2508 - NRXT2508
XRB 3010 30 55 10 7.35 8.36 0.12 RB3010 CRB3010 -
XRB 3510 35 60 10 7.64 9.12 0.13 RB3510 - -
XRB 4010 40 65 10 8.33 10.6 0.16 RB4010 CRB4010 NRXT4010
XRB 4510 45 70 10 8.62 11.3 0.17 RB4510 - -
XRB 5013 50 80 13 16.7 20.9 0.27 RB5013 CRB5013 NRXT5013
XRB 6013  60 90 13 18 24.3 0.3 RB6013 CRB6013 NRXT6013
XRB 7013 70 100 13 19.4 27.7 0.35 RB7013 CRB7013 NRXT7013
XRB 8013 80 110 13 20.5 32 0.38 - - NRXT8013
XRB 8016 120 16 30.1 42.1 0.7 RB8016 CRB8016 NRXT8016
XRB 9016 90 130 16 31.4 45.3 0.75 RB9016 CRB9016 NRXT9016
XRB 9020 140 20 32 49 1.27 - - NRXT9020
XRB 10016 100 140 16 31.7 48.6 0.83 RB10016 - -
XRB 10020 150 20 33.1 50.9 1.45 RB10020 CRB10020 NRXT10020
XRB 11012 110 135 12 12.5 24.1 0.4 RB11012 - -
XRB 11015 145 15 23.7 41.5 0.75 RB11015 - -
XRB 11020 120 160 20 34 54 1.56 RB11020 CRB11020 NRXT11020
XRB 12016 150 16 24.2 43.2 0.72 RB12016 - -
XRB 12020 170 20 36 62 1.6 - - NRXT12020
XRB 12025 180 25 66.9 100 2.62 RB12025 CRB12025 NRXT12025
XRB 13015 130 160 15 25 46.7 0.72 RB13015 - -
XRB 13025 190 25 69.5 107 2.82 RB13025 CRB13025 NRXT13025
XRB 14016 140 175 16 25.9 50.1 1 RB14016 - -
XRB 14025 200 25 74.8 121 2.96 RB14025 CRB14025 NRXT14025
XRB 15013 150 180 13 27 53.5 0.68 RB15013 - -
XRB 15025 210 25 76.8 128 3.16 RB15025 CRB15025 NRXT15025
XRB 15030 230 30 100 156 5.3 RB15030 CRB15030 NRXT15030
XRB 16025 160 220 25 81.7 135 3.14 RB16025 - -
XRB 17020 170 220 20 29 62.1 2.21 RB17020 - -
XRB 18025 180 240 25 84 143 3.44 RB18025 - -
XRB 19025 190 240 25 41.7 82.9 2.99 RB19025 - -
XRB 20025 200 260 25 84.2 157 4 RB20025 CRB20025 -
XRB 20030 280 30 114 200 6.7 RB20030 CRB20030 NRXT20030
XRB 20035 295 35 151 252 9.6 RB20035 CRB20035 -
XRB 22025 220 280 25 92.3 171 4.1 RB22025 - -
XRB 24025 240 300 25 68.3 145 4.5 RB24025 - -
XRB 25025 250 310 25 69.3 150 5 RB25025 CRB25025 NRXT25025
XRB 25030 330 30 126 244 8.1 RB25030 CRB25030 NRXT25030
XRB 25040 355 40 195 348 14.8 RB25040 CRB25040 -
XRB 30025 300 360 25 76.3 178 5.9 RB30025 CRB30025 NRXT30025
XRB 30035 395 35 183 367 13.4 RB30035 CRB30035 NRXT30035
XRB 30040 405 40 212 409 17.2 RB30040 CRB30040 NRXT30040
XRB 35020 350 400 20 54.1 143 3.9 RB35020 - -
XRB 40035 400 480 35 156 370 14.5 RB40035 CRB40035 NRXT40035
XRB 40040 510 40 241 531 23.5 RB40040 CRB40040 NRXT40040
XRB 40070 580 70 470 811 72.4 - CRB40070 -
XRB 45025 450 500 25 61.7 182 6.6 RB45025 - -
XRB 50025 500 550 25 65.5 201 7.3 RB50025 - -
XRB 50040 600 40 239 607 26 RB50040 CRB50040 NRXT50040
XRB 50050 625 50 267 653 41.7 RB50050 CRB50050 NRXT50050
XRB 50070 680 70 653 1330 86.1 - CRB50070 -
XRB 60040 600 700 40 264 721 29 RB60040 CRB60040 NRXT60040
XRB 60070 780 70 700 1540 102 - CRB60070 -
XRB 600120 870 120 1490 2800 274 - CRB600120 -
XRB 70045 700 815 45 281 836 46 RB70045 CRB70045 -
XRB 70070 880 70 766 1810 115 - CRB70070 -
XRB 700150 1020 150 1980 3820 478 - CRB700150 -
XRB 80070 800 950 70 468 1330 105 RB80070 CRB80070 -
XRB 800100 1030 100 1140 2640 247 - CRB800100 -
XRB 90070 900 1050 70 494 1490 120 RB90070 - -
XRB1000110 1000 1250 110 1220 3220 360 RB1000110 - -
XRB1250110 1250 1500 110 1350 3970 440 RB1250110 - -
