XRC Cross Roller Bearing

Product Description
XRC type, in the case of the same journal, this type has a smaller interface size than the XRB type, due to the use of ultra-thin design, the outer ring and the inner ring is not installed holes, the installation of the flange and support seat, In the inner ring rotation of the application.

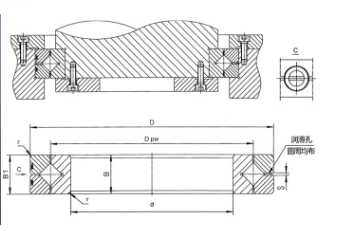

XRC Cross Roller Bearing

Type Dimension(mm) Rated Load(KN) Weight Releated type
ID OD B Roller pitch circle diameter shaft shoulder dimension Axial Radial
d D B h ds Dh Ca Coa Cr Cor KG INA
XRC7010 70 90 10 80 79.5 80.5 18 60 12 30 0.3 SX011814
XRC9013 90 115 13 102 101.5 102.5 26 96 17 47 0.4 SX011818
XRC10013 100 125 13 112 111.5 112.5 28 106 18 52 0.5 SX011820
XRC12016 120 150 16 135 134.4 135.6 41 153 26 75 0.8 SX011824
XRC14018 140 175 18 157 156.3 157.7 64 237 41 116 1.1 SX011828
XRC16020 160 200 20 180 179.2 180.8 69 272 44 133 1.7 SX011832
XRC18022 180 225 22 2020 201.2 202.8 98 381 63 187 2.3 SX011836
XRC20024 200 250 24 225 224.2 225.8 106 425 68 208 3.1 SX011840
XRC24028 240 300 28 270 269.2 270.8 149 612 95 300 5.3 SX011848
XRC30038 300 380 38 340 339.2 340.8 245 1027 156 504 12 SX011860
XRC34038 340 420 38 380 379.2 380.8 265 1148 167 563 13.5 SX011868
XRC40046 400 500 46 450 449 451 385 1699 244 833 24 SX011880
XRC50056 500 620 56 560 558.8 561.2 560 2538 355 1244 44 SX0118/50
