Yoke Type Track Rollers - NUTR Series

Product Description

MBY track roller bearings include mast rollers and chain pulleys, and york type track rollers. They are essentially cylindrical roller or needle roller bearings which have a thick-walled outer race.
The pulleys are available with a flat runner surface or a crowned one, which can be designed according to customer’s application. They can roll directly on the tray under heavy load and shock load. They are greased for life. Under normal operating conditions, they are maintenance-free, while they should be re-lubricated under severe working condition to prolong the working lifespan.



Note：Swipe left or right to view the complete table!

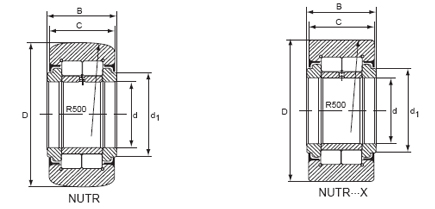

MBY Bearing Designation		Shaft Diameter	Boundary Dimensions					Basic Load Rating		Limiting Speed
Without IR	Mass		d	D	B	C	d1	Cr	Cor	Oil
								Dynamic	Static
	g	mm	mm					N		rpm
NUTR15	99	35	15	35	19	18	20	20500	24500	6500
NUTR15	158	42	15	42	18	18	20	20500	24500	6500
NUTR17	147	40	17	40	21	20	22	21800	28500	5500
NUTR17	220	47	17	47	21	20	22	21800	28500	5500
NUTR20	245	47	20	47	25	24	27	36900	48900	4200
NUTR20	321	52	20	52	25	24	27	36900	48900	4200
NUTR202X		35	15	35	19	18	19.5	20500	24500	6500
NUTR25	281	52	25	52	25	24	31	40800	58500	3400
NUTR25	450	62	25	62	25	24	31	10800	58500	3400
NUTR30	465	62	30	62	29	28	38	56800	77500	2600
NUTR30	697	72	30	72	29	28	38	56800	77500	2600
NUTR30		80	30	80	31	30	44	56800	77500	2500
NUTR35	630	72	35	72	29	28	44	63000	91000	2100
NUTR35	836	80	35	80	29	28	44	63000	91000	2100
NUTR40	816	80	40	80	32	30	51	87900	108000	1600
NUTR40	1129	90	40	90	32	30	51	87900	108000	1600
NUTR45	883	85	45	85	32	30	55	93600	119000	1400
NUTR45	1396	100	45	100	32	30	55	93600	119000	1400
NUTR50	950	90	50	90	32	30	60	98900	140000	1300
NUTR50	1690	110	50	110	32	30	60	98900	14000	1300
