d | 45 |
D | 100 |
B | 25 |
r(min) | 1.5 |
Cr (KN) | 38.1 |
Cor (KN) | 12.7 |
Limiting Speed Grease | 6100 |
Limiting Speed Oil | 7500 |

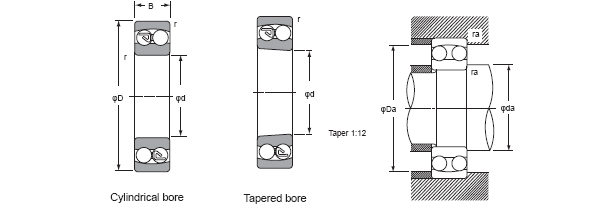

Cylindrical Bore | 1309 |
Tapered Bore | 1309K |
da (min) | 53 |
Da (Max) | 92 |
ra (Max) | 1.5 |
e | 0.25 |
Y1 | 2.56 |
Y2 | 3.95 |
Y0 | 2.68 |
Mass (Cylindrical Bore) | 0.957 |
Mass (Tapered Bore) | 0.942 |
