PHS18 Rod end Spherical Plain Bearings

Product Description

Type	Radial spherical plain bearings
items	PHS18
Belong	Plain Bearings

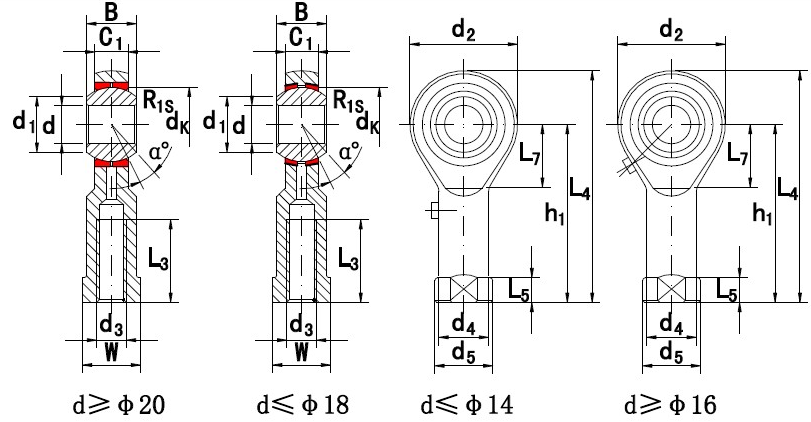

PHS 18 size:
d	18 mm
L4	92 mm
L5	10 mm
dL	31 mm
L3	36 mm
d1	21,9 mm
d2	42 mm
d3	25 mm
dk	31,750 / mm
h1	71 mm
r1 min.	0,2 mm
B	23 mm
C1	16,5 mm
W	27 mm
Thread (G)	M18×1,5
Weight	0,295 Kg
Basic dynamic load rating (C)	25,7 kN
Basic static load rating (C0)	30,2 kN
