POS12 Spherical Plain Bearings

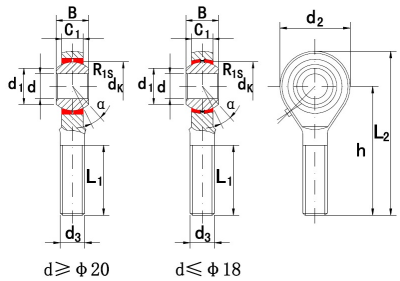

Bearing dimensions and specification in brand catalogue :

d - 12 mm

L2 - 69 mm

d1 - 15,4 mm

d2 - 30 mm

dk - 22,225 / mm

h - 54 mm

r1 min. - 0,2 mm

B - 16 mm

C1 - 12 mm

L1 - 33 mm

Thread (G) - M12×1,75

Weight - 0,085 Kg

Basic dynamic load rating (C) - 13,1 kN

Basic static load rating (C0) - 16,9 kN
